Eclipse is a free open-source Java environment available from http://eclipse.org. Eclipse is a Java
program, but it uses a custom user interface toolkit that does not run
on all platforms that supports Java 2. Check the web site for
supported platforms. Eclipse requires a Java 2 runtime, so you need to
install the Java 2 SDK first before installing Eclipse. You can
download the SDK from http://java.sun.com/j2se/.

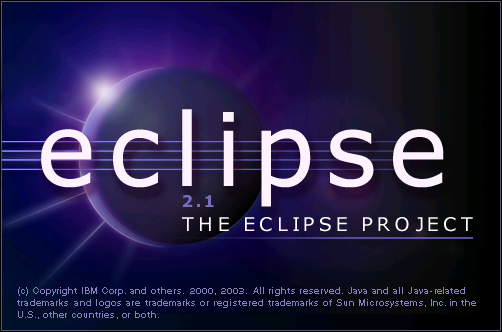

When you start Eclipse, a startup screen appears, and the program spends some time loading various modules.

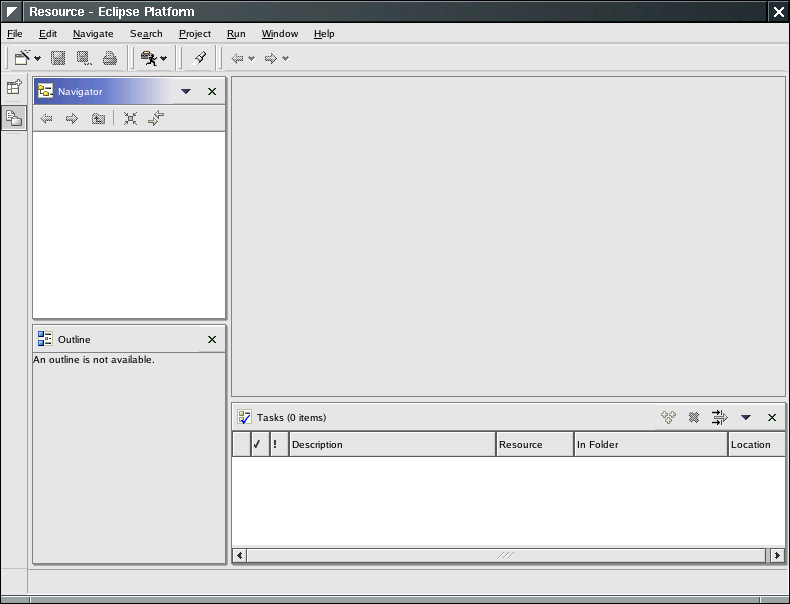

When Eclipse has finished loading, you see a screen similar to the
following:
If you already have your program in a Java file (or a directory containing multiple Java files), then you need to make a project that contains the file. Follow these steps.

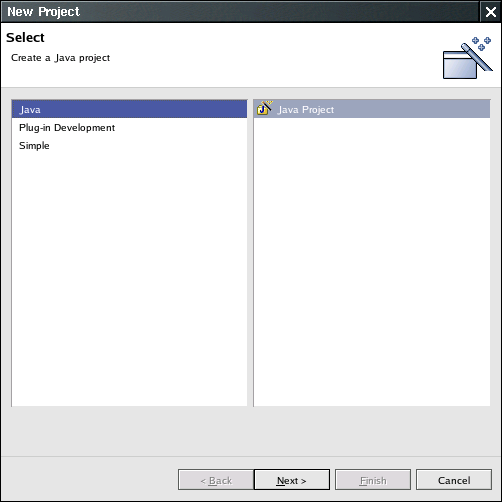

Select File->New->Project
from the menu. You will get the following dialog.
Select the Java option and click on the Next> button. (Do not select the Simple option!)
In the following dialog, give a name to the project. A good choice
for the name is the directory that contains the files. Then uncheck the Use default box, and provide the full
path of the directory that contains the files, such as
/home/cay/bigj/ch02/greeter1/or
c:\bigj\ch02\greeter1\
Click on the Finish button.
The project appears in the left hand panel. Expand it, and also expand the default package icon. Double-click on one of the file names. The file is displayed in an edit window:
If you write a program from scratch, then you can start your work in
Eclipse. It is always best to place each of your programs into a
separate directory. Eclipse will create the directory for you.
Select the Java option and click on the Next> button. (Do not select the Simple option!)

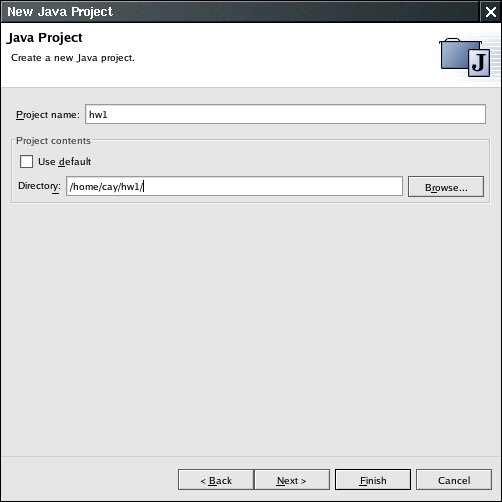

In the following dialog, give a name to the project. A good choice for the name is the directory that contains the files. Then uncheck the Use default box, and provide the full path of the directory that contains the files, such as/home/cay/hw1/or
c:\homework\hw1\

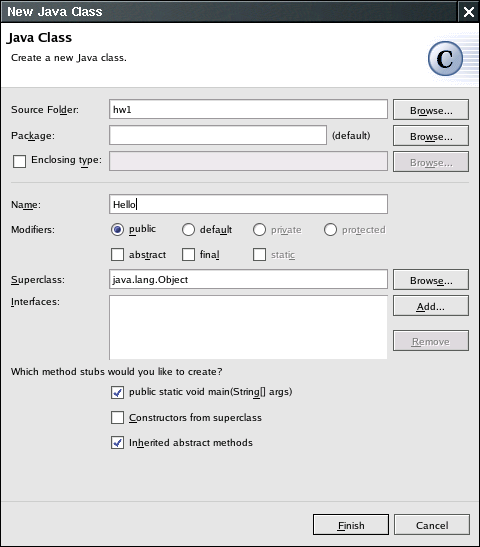

The New Class dialog appears.
Supply the name of the class. If you want a main method for this class, check the box public static void main(String[] args).
Click on the Finish button.

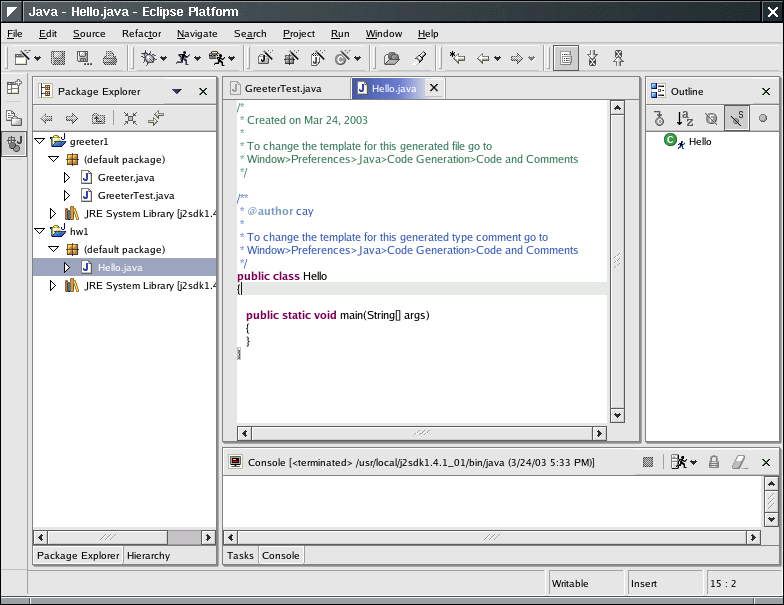

Finally, you get an editor window into which you can type your program.
As you type in your program, occasionally select File->Save
from the menu to save your work.
You may also want to experiment with some of the other convenience
features of Eclipse, such as Source->Generate
getter and setter.
To compile a program in Eclipse, select the project in the pane on
the left hand side. Then select Project->Rebuild Project from
the menu.
Compilation errors are displayed in a window at the bottom of the
Eclipse frame.
Click on an error message, and the cursor moves to the offending line in the edit window:
To run a program, select the Run->Run as...->Java Application menu option. The program runs. Any console output is directed to a window at the bottom of the screen.
To run an applet, first compile the program as previously described. Make sure the current project is still selected in the leftmost pane. Then select the menu option Run->Run as...->Java Applet. Eclipse will launch the applet viewer on the subclass of Applet that it finds in your project.
The applet viewer is started with a default size which is rather
small. Just resize the applet window.
Close the window to terminate the applet.

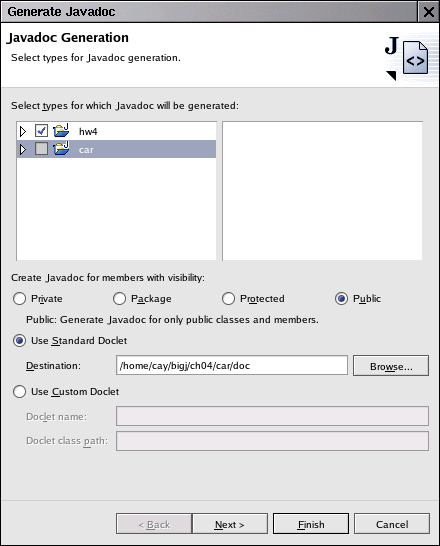

Select Project -> Generate
Javadoc from the menu. You will get a dialog such as the
following one:
Click the cleckbox for the project that you want to document. Then
make sure that the destination directory is correct. Click on Finish.
Before debugging a program, you should set a breakpoint at the start
of the main method.

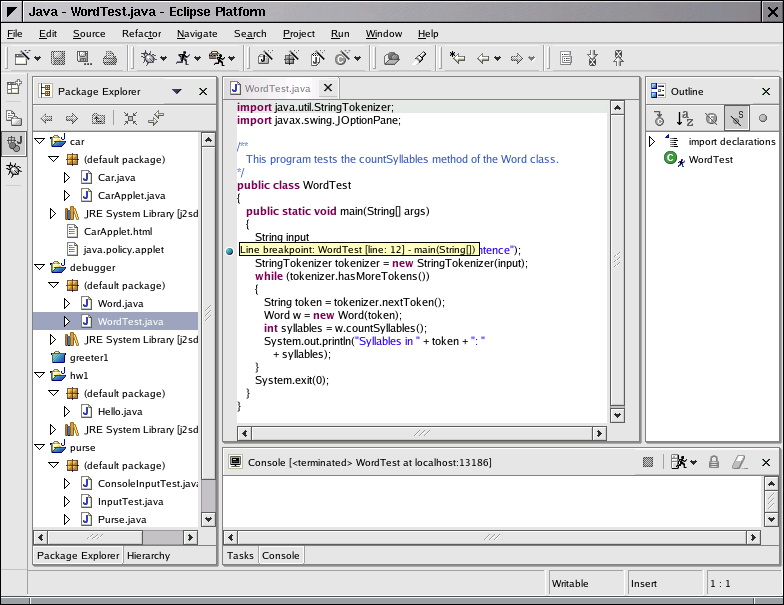

Double-click on the gray bar to the left of the edit window, next to
the first source line after the
line public static void
main(String[] args). A blue dot appears, indicating the
breakpoint.

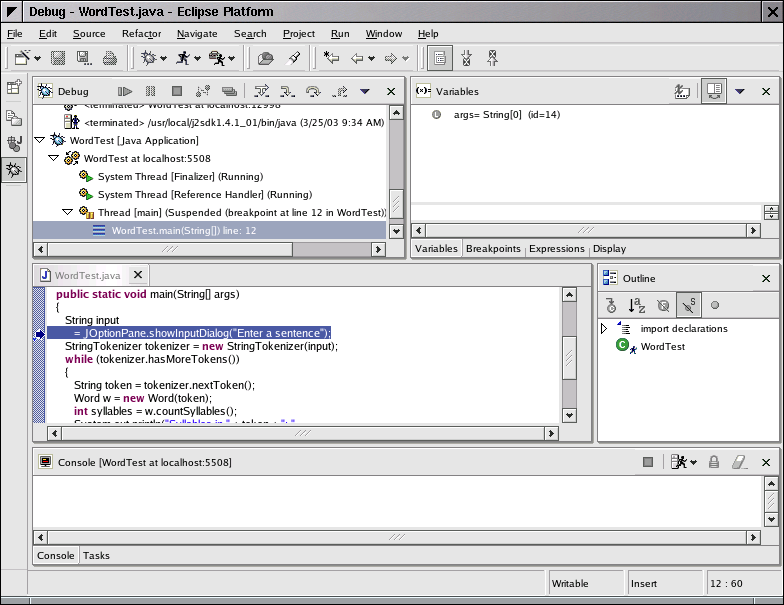

Then select the menu option Run->Debug as...->Java
Application. The debugger starts and switches the Eclipse display
to the debugger perspective.
It pauses at the breakpoint that you set.
Whenever you select the menu option Run->Step Over (or the F6 keyboard shortcut), then the debugger executes one line of the program, without stepping inside method calls. For example, tracing over the call
Word w = new Word(token);
will not trace inside the Word constructor but simply run the program to the next line of the main method.

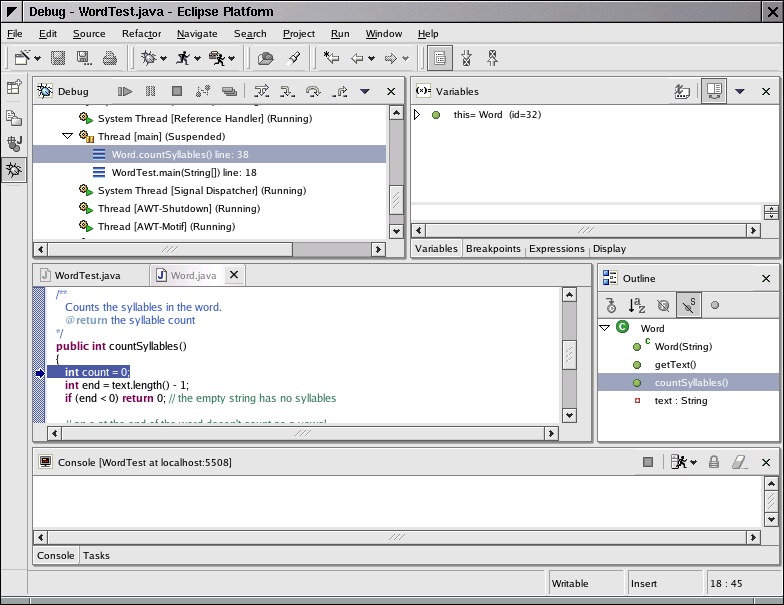

Contrast that with the menu option Run->Step Into(or the F5 keyboard shortcut). This command traces inside method calls. For example, tracing into the line
int syllables = w.countSyllables();
stops at the first line of the countSyllables method:

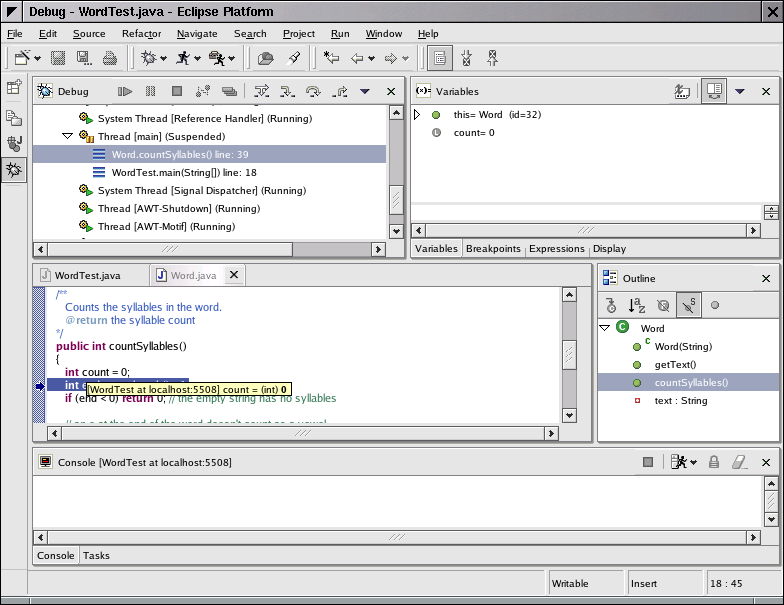

To see the value of a variable of a simple type (such as a number or
a string), simply hold the mouse pointer over the variable name when the
debugger is stopped. Then the contents of the variable is displayed in a
small rectangle next to the variable name. For example, here is the
contents of the count variable in the countSyllables method.
The top right window shows all local variables. Click on the
triangles to look inside objects. To see the instance fields of the
implicit parameter, look inside this.

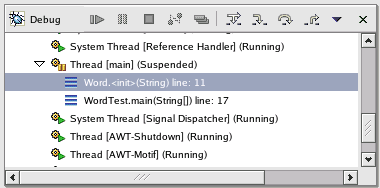

The top left window shows the call stack (with the most recently
called method on top). For example, the following call stack shows that
the WordTest.main method
called the Word.<init>
method, that is, the constructor.
Tracing through a program can be tedious. Often, you want the
program to run at full speed until a particular line of code is

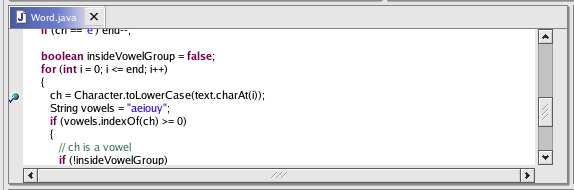

encountered. To set a breakpoint at a line, double-click on the
gray bar to the left. A blue dot indicates the breakpoint.
Now select the menu option Run->Resume or hit the F8 keyboard shortcut. The program runs to the next breakpoint, stopping only for user input.
You can set as many breakpoints as you like.
To remove a breakpoint, double-click on it with the mouse.
When the program has completed, the debugger stops automatically.
When you want to terminate a debugging session without running the
program to the end, select the menu option Run->Terminate.
To return to the Java perspective (in which you can edit and compile
your program), locate the perspectives toolbar at the left of the
Eclipse frame:
