Structural Test #1: Analysis of a compression unit



Introduction: In this example you will be tested on the 2-D Truss element in ANSYS.

Physical Problem: The structure is mainly subjected to loading in the horizontal direction due to compressive forced. In this example we will consider only loading due to these forces, which are in the horizontal direction.

Problem Description:

bullet

The tower is made up of trusses. You may recall that a truss is a structural element that experiences loading only in the axial direction.

bullet

Units: Use S.I. units ONLY

bullet

Geometry: the cross sections of each of the truss members is 6.25e-3 sq. meter.

bullet

Material: Assume the structure is made of steel with modulus of elasticity E=200 GPa.

bullet

Boundary conditions: The unit is constrained along X and Y directions at the bottom right corner and the top left corner.

bullet

Loading: The tower is loaded at bottom left corner (6000N). The load on the top right corner equals -6000N.

bullet

Objective:
bullet

To determine deflection at each joint.

bullet

To determine reaction forces at the mounted corners.



bullet

You are required to hand in print outs for the above.

bullet

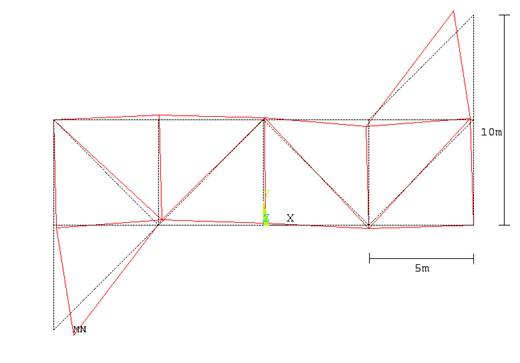

Figure:
bullet

The units are as explained below, kept simple to expedite the test (all horizontal and vertical links are 5m long)



bullet

IMPORTANT: Convert all dimensions and forces into SI units.



·         Create the keypoints defining the joints for the truss.

·         Connect them with lines to define the truss links.

·         Define the Material Properties of the Steel Element (Elastic Modulus and Poison’s Ration are the important qualities)

·         Define the Element Properties as a 2D Spar Structural Link

·         Define the “Real Constants” of the linkage by setting the values for the Element Type for Real Constants. (Set the values for a Real Constant Set No. of 1 and a Cross Sectional Area of 6.25e-3)

bullet

Mesh the truss such that each line is exactly one element.

bullet

Apply Boundary Conditions (X and Y movement constraints on the upper left corner and the lower right corner, on the lower left corner there is a load of 6000N, on the upper right corner there is a load of –6000N.

bullet

Solve

bullet

List the nodal results of the analysis. (for both degrees of freedom)

bullet

Plot the nodal deformation in the X direction.

bullet

These are the results you should expect:



(The nodal displacements will be listed as follows)

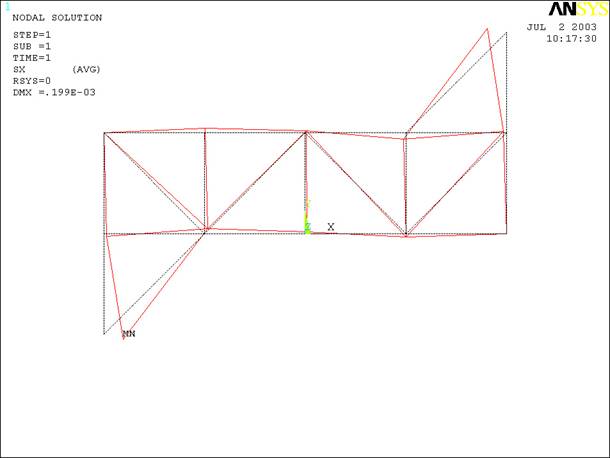

(The plot of the deformation will look like this)
