Many thanks to Filipe Fortes and Adam Ruprecht for their contributions to today's notes. -GMK

Reading:

Chapter 8

A Quick Review

A resource is an abstraction for any reason to wait. For our purposes, resoures are non-sharable and serially reusable. That means that only one process (or thread) can use a resource at the same time. The resource becomes available for use only after the first user has released it.

1. Request resource - if available then request is granted; otherwise, it is delayed until the resource is available
2. use resource
3. release resource

Def'n: Deadlock - The condition that arises when there is a set of processes (or threads) such that each process (or thread) holds a resource that another process in the set is waiting to acquire. This situation forces all processes (or threads) in the set to wait forever.

Conditions Necessary For Deadlock:

All of these conditions are necessary for deadlock to occur. If any condition is not satisified, the system is not in a deadlocked state. If it is impossible to satisfy all four conditions concurrently, deadlock is impossible.

1. Mutual exclusion - at least one resource must be held in a non-sharable way
2. Hold and wait - at least one process is holding a resource and waiting for another resource that is currently in use
3. No preemption (of holder) - while holding, no process can take the resource away from you
4. Circular wait - there must exist a circular chain of processes, each waiting for a resource held by next process in the chain

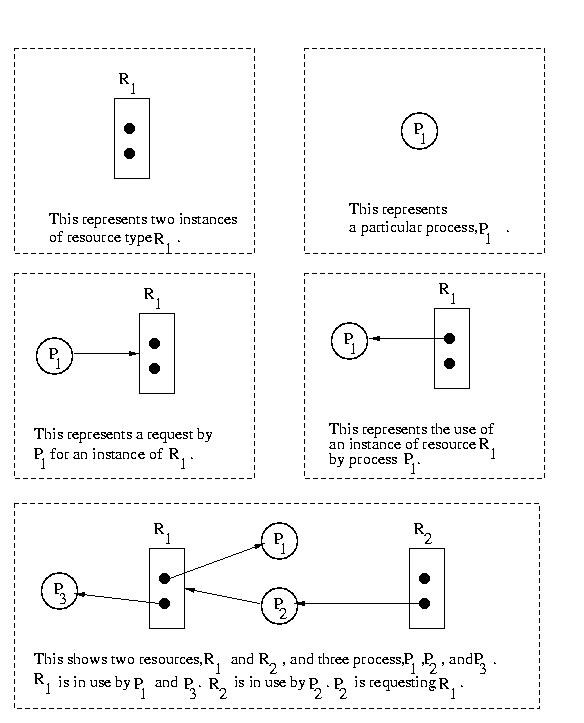

Resource Allocation Graphs

Resource allocation graphs can be used describe a system's use of resources and demonstrate the existance of deadlocks.

Consider a resource allocation graph, G, a set of tuples, {V, E}, where V is a vertex and E is an edge.

There are two types of verticies:

• Processes - we'll draw these as circles and label them with the PID
• Resources - we'll draw these as rectangles and label them with the resource type. We'll put one dot inside of the box for each instance of the resource.

  There are two types of edges:

  • Requests - we'll label these with an arrow from the requesting process to the requested resource. Since the process doesn't care which instance fo the reosurce it gets, the arrow is drawn to the box, not to a particular dot therein.
  • Resource use - we'll label these with an arrow from a particular instance of a resource to the process that is currently using it. Since a process is making exclusive use of a particular instance of a resource, we draw the arrow from a particular dot to the process that is using it.



  Deadlock Detection



  Single Instance of Each Resource Type

  Given a resource allocation graph, we can perform deadlock detection, perhaps as part of the idle process. This works nicely, because if a deadlock exists, the deadlocked processes will be blocked, not running, so idle will have the opportunity to run.

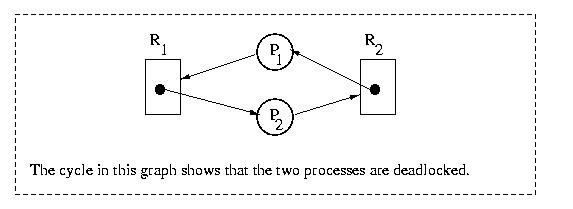

  If only a single instance of each resource type exists, then the system is deadlocked, if and only if there is a cycle in the graph. The most common solution is to kill -9 the processes in the set



  Multiple Instances of Each Resource Type

  If multiple instances of a single resource type exist, we must reduce the graph before checking for cycles. Unless we reduce the graph, a cycle does not indicate deadlock.

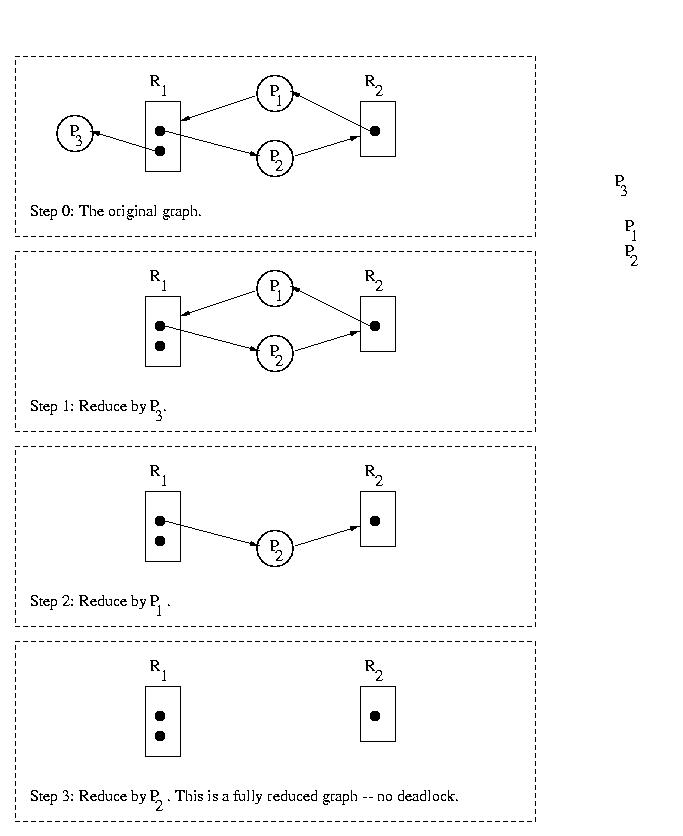

  Reducing the graph involves asking the question, "What happens when this runnable process finishes?" Basically, we assume that any process that isn't waiting for a resource completes and releases the resources that it is hold. This in turn makes those resources available to other processes. The process of finding runnable processes and removing them from the graph is repearted, until there are no more runnable processes.

  The system is in a deadlocked state, if and only if the graph is not reducible. That is to say that the graph shows the system to be deadlocked if and only if all runnable processes have been reduced (this implies a cycle).





  Deadlock Prevention

  The goal of deadlock prevention is to prevent the necessary conditions from being satisified:

  • Mutual Exclusion - make resources sharable - example: read-only files
  • Hold-and-wait - if requested resource is unavailable, release all currently allocated resources before waiting. But this allows livelock. Another approach is to request all resources at once in a single request. If processes request resources only once and are granted the requested resources at once, hold-and-wait is not satisfied and livelock is not possible.
  • No preemption - make resources preemptable
  • Circular wait - allow processes to wait for resources, but ensure that the waiting can't be circular. One approach might be to assign a precedence to each resource and force processes to allocated resources in order of increasing precedence. That is to say that if the highest precedence resource a process currently holds is X, the process cannot request any resource with precedence <= X. This forces resource allocation to follow a particular and non-circular ordering, so circular wait cannot occur. waiting can happen, but can't be circular - how do it? - allow holding only one; if request another resource, must free one holding (also hold-and-wait - as are all solutions of this type to this problem) - OR assign numerical value (precedence) to each type of resource, if max currently held precedence is X, then may only request (or grant) resources with precedence greater than X

  Deadlock Avoidance

  Deadlock prevention disallows many different ways of using resources, because they could potentially lead to deadlock. But if the resources suffer reasonable low contention, deadlock could be unlikely. The result is that resources are left idle to prevent the infrequent or unlikely occurance of deadlock. This leads to low resource utilization. Deadlock avoidance is an alternative to deadlock prevention that can yield higher resource utilization. But nothing comes for free. The cost of deadlock avoidance is that we must know much more about how the various processes will request the resources.

  The goal of deadlock avoidance is to ensure that the system is always in a safe state. When in a safe state, deadlock is not possible. But if we are in an unsafe state, deadlock could occur. The behavior of the collection of processes determines if deadlock results in an unsafe state, whereas no action of a process can lead to deadlock if the system is in a safe state.

  To ensure that the system remains in a safe state, we must know the following for each process:

  • The number of each type resource that it currently holds
  • The maximum number of each type of resource that it might need
  • The number of each type of resource that exist in system

  Example:

  System:


  2 processes
  1 type of resource
  5 instance of that resource



  Maximum needs:


  P₁: 4 instances
  P₂: 4 instances


  Initial state:


  P₁ - 0 allocated
  P₂ - 0 allocated


  Later (safe):


  P₁ - 1 allocated
  P₂ - 2 allocated


  Later (unsafe):


  P₁ - 2 allocated
  P₂ - 2 allocated
