Transactions

Transactions are sequences of actions such that all of the operations within the transaction succeed (on all recipients) and their effects are permanantly visible, or none of none of the operations suceed anywhere and they have no visible effects; this might be because of failure (unintentional) or an abort (intentional).

Characterisitically, transactions have a commit point. This is the point of no return. Before this point, we can undo a transaction. After this point, all changes are permanant. If problems occur after the commit point, we can take compensating or corrective action, but we can't wave a magic wand and undo it.

Banking Example:

Plan: A) Transfer $100 from savings to checking
B)Transfer $300 from money market to checking
C) Dispense $350

Transaction:

1. savings -= 100 2. checking += 100 3. moneymkt -= 300 4. checking += 300 5. verify: checking > 350 6. checking -= 350 7.

8. dispense 350

Notice that if a failure occurs after points 1 & 3 the customer loses money.

If a failure occurs after points 2, 4, or 5, no money is lost, but the collectiopn of operations cannot be repeated and the result in not correct.

An explicit abort might be useful at point 6, if the test fails (a negative balance before the operations?)

Point 7 is the commit point. Noticve that if a failure occurs after point 7 (the ATM machine jams), only corrective action can be taken. The problems can't be fixed by undoing the transaction.

Properties of Transactions

Acid
Consistency (serializability)
Isolation
Durability

• Acid - "All or nothing"

• Consistency -- Perhaps better described as "Serializability". Transactions begin with the system in a valid state and should leave things that way once completed.
• Isolation - Regardless of the level of concurrency, transactions must yields the same results as if they were executed one at a time (but any one of perhaps several orderings).
• Durability - permanance. Changes persist over crashes, &c.

Distributed Transactions and Atomic Commit Protocols

Often times a transaction will be distributed across several systems. This might be the case if several replicas of a database must remain uniform. To achieve this we need some way of ensuring that the distributed transaction will be valid on all of the systems or none of them. To achieve this, we will need an atomic commit protocol. Or a set of rules, that if followed, will esnure that the transaction commits everywhere or aborts everwhere.

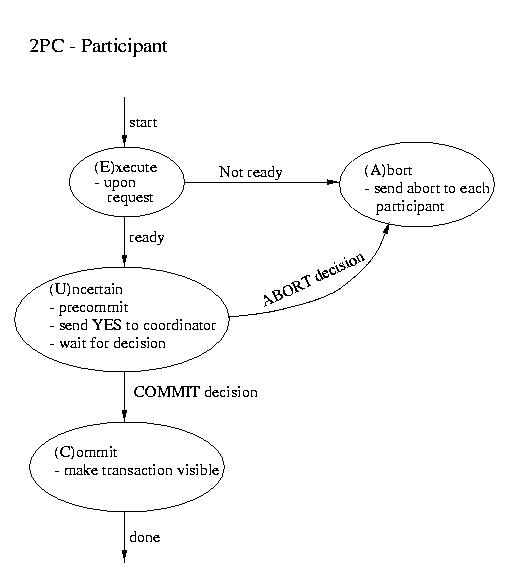

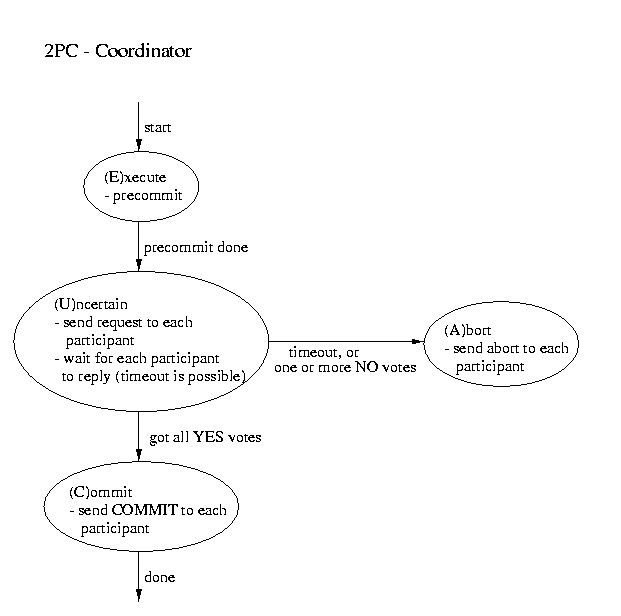

Two Phase Commit (2PC)

The most commonly used atomic commit protocol is two-phase commit. You may notice that is is very similar to the protocol that we used for total order multicast. Whereas the multicast protocol used a two-phase approach to allow the coordinator to select a commit time based on information from the participants, two-phase commit lets the coordinator select whether or not a transaction will be committed or aborted based on information from the participants.

Coordinator	Participant
----------------------- Phase 1 -----------------------
Precommit (write to log and.or atomic storage) Send request to all participants	Wait for request Upon request, if ready: Precommit Send coordinator YES Upon request, if not ready: Send coordinator NO
Coordinator blocks waiting for ALL replies (A time out is possible -- that would mandate an ABORT)
----------------------- Phase 2 -----------------------
This is the point of no return! If all participants voted YES then send commit to each participant Otherwise send ABORT to each participant	Wait for "the word" from the coordinator If COMMIT, then COMMIT (transaction becomes visible) If ABORT, then ABORT (gone for good)

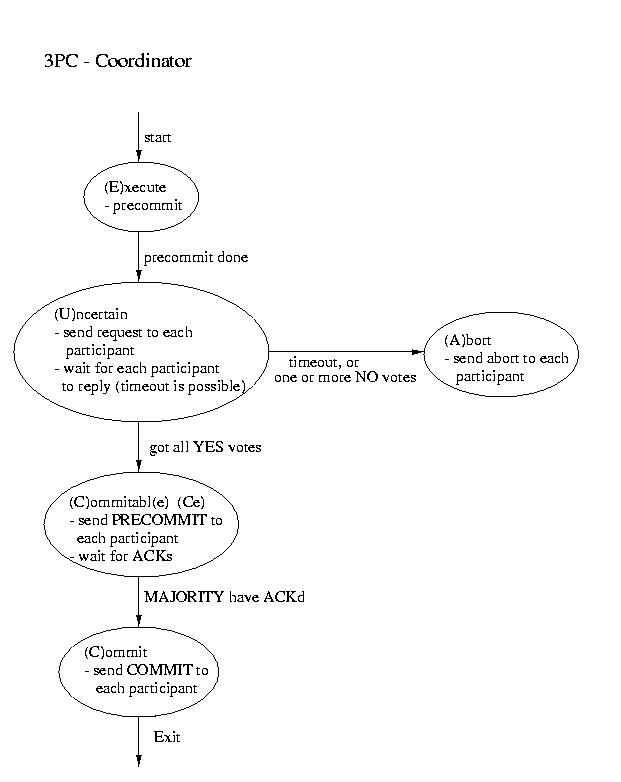

Three-phase Commit

Another real-world atomic commit protocol is three-pahse commit (3PC). This protocol can reduce the amount of blocking and provide for more flexible recovery in the event of failure. Although it is a better choice in unusually failure-prone enviornments, its complexity makes 2PC the more popular choice.

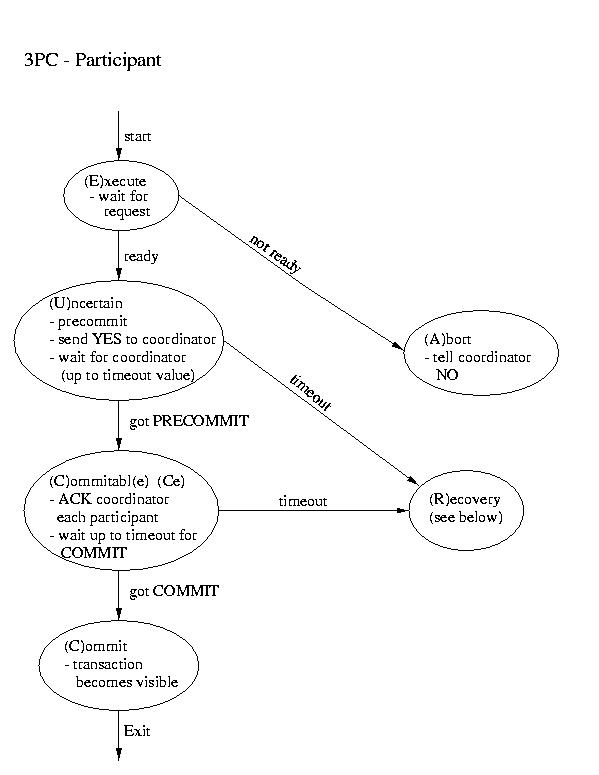

Recovery in 3PC

If the participant finds itself in the (R)ecovery state, it assumes that the coordinator did not respond, because it failed. Although this isn't a good thing, it may not prove to be fatal. If a majority of the participants are in the uncertain and/or commitable states, it may be possible to elect a new coordinator and continue.

We'll discuss how to elect a new coordinator in a few classes. So, for now, let's just assume that this happens auto-magically. Once we have a new coordinator, it polls the participants and acts accordingly:

• If any participant has aborted, it sends ABORTs to all (This action is mandatory -- remember "all or none").
• If any participant has committed, it sends COMMIT to all. (This action is mandatory -- remember "all or none").
• If at least one participant is in the commitable state and a majority of the participants are commitable or uncertain, send PRECOMMIT to each participant and proceed with "the standard plan" to commit.
• If there are no committable participants, but more than half are uncertain, send a PREABORT to all participants. Then follow this up with a full-fledged ABORT when more than half of the processes are in the abortable state. PRECOMMIT and abortable are not shown above, but they are complimentary to COMMIT and commitable. This action is necessary, because an abort is the only safe action -- some process may have aborted.
• If none of the above are true, block until more responses are available.

Two-Phase Locking

Transaction, by their nature, play with many different, independent resources. It is easy to imagine that, in our quest for a high throughput, we process two transactions in parallel that share resources.

This can generate an obvious problem for "Isolation". We need to ensure that the results are consistent with the two (or more) concurrent transactions being commited in some order. So we can't allow them to make uncoordinated use of the resources.

So, let's asusme that, while any transaction is writing to a resource, it is locked, preventing any other transaction from writing to it. Now, a transaction can acquire all of the locks it needs, complete the mutation, and release the locks. This scheme prevents the corruption of the resources -- but opens us up to another problem: deadlock.

Let's imagine that one transaction wants to access resource A, then C, then B. And, other concurrent transaction wants to access resource B, then A, then C. We've got a problem if the one of the transactions grabs resources A and C, and the other grabs resources B. Neither transaction can complete. One is hold A and C, waiting for the other to release B. And, the other is holding B, while waiting for C and A. What we have here is known as circular wait, which is one of the four "necessary and sufficient" conditions for deadlock, usually captured as:

• Non-sharable resource, e.g. mutual exclusion
• Non-preemptable (no police, or even big sticks, to settle disputes)
• Hold and wait usage (holding a resource while needing another)
• Circular wait (hold and wait + a circular dependency chain)

Fortunately, circular-wait is often very easy to attack. If the resources are enumerated in a consistent way across users, e.g. A, B, C, D, ...Z, and each user requests resources only in increasing order (without wrap-around), circular wait is not possible. One can't wait on a lower resource than one already holds, so the depednency chain can't be circular.

This observation is the basis of a two-phase lock. In the first phase, a transaction acquires -all- of the locks it needs in strictly -increasing- order. It then uses the resources. In the last phase, it shrinks, or releases locks. This universal ordering in which all users acquire resources prevents deadlock.

In practice, transactions often are said to begin phase-1 (growing) when they start and end phase-1 when they are done processing and are ready to commit. Phase-2 begins (and ends) upon the commit. So, the essential part of 2PL is, as you might guess, the serial order in which the locks are acquired. The two phases are, in practice, mostly imaginary.

Safe Schedules

Transactions must execute as if in isolation. That doesn't necessarily prohibit concurrency among transactions -- it just implies that this concurrency shouldn't have any effect on the results or the state of the system. In fact, as long as the results and other state are the same as for some serial execution of the transactions, the transactions can be interleaved, executed concurrently, or btoh.

Transaction processing systems (TPSs) contain a transaction scheduler that dispatches the transactions and allows them to execute. This scheduler isn't necessarily FIFO, and it doesn't necessarily dispatch only one at a time. Instead, it tries to maximize the amount of work that gets done. One popular measure of the performance of a TPS is the number of transactions per second (TPS). Yes, unfortuantely, TPS is also its abbreviation.

In discussing the scheduler, it is helpful to ask the question, "What is a schedule?" It is an ordering of events. The transaction scheduler's job is to execute the indivdual operations that compose the transactions in an order that is efficient and preserves the property of isolation. As a result, it is the schedule of individual operations that is our concern.

Safe Concurrency: Serial Schedules and Serializability

A serial schedule is a schedule that executes all of the operations from one transaction, before moving on to the operations of another transaction. In other words the transactions are executed in series. An interleaved schedule is a schedule in which the operations of an individual transaction are executed in order with respect to the same transaction, but without the restriction that the transactions be scheduled as a whole. In other words, interleaving allows the scheduling of any operation, as long as the operations of the same transaction are not reversed.

Some interleaved schedules are safe, whereas other way result in violations of the isolation property. Safe interleaved schedules are known as serializable schedules. This is because an interleaved schedule is only safe if it is equivalent to a serial schedule -- that's why they call it serial-izable.

What did I mean when I wrote, is equivalent? An interleaved schedule is equivalent to a serial schedule, if transactions which containing conflicting operations are not interleaved. Operations are said to be conflicting if the results differ depending on their order.

This means that an interleaved schedule is serializable if, and only if, each pair of operations occurs in the same order as they would in some serial schedule.

Serializability Graphs

We can see if a schedule is serializable by building a serialzability graph. The Fundamental Theorem of Serializability states that a schedule H is serializable, if and only if, SG(H) is acyclic.

So how do we build a serializability graph?

• Create a node for each transaction
• Draw an edge from T_i to T_j if and only if some operation in T_i conflicts with an operation in T_j and the operation in T_i occurs before the operation in T_j in the given schedule. The example belwo will make this a bit clearer.

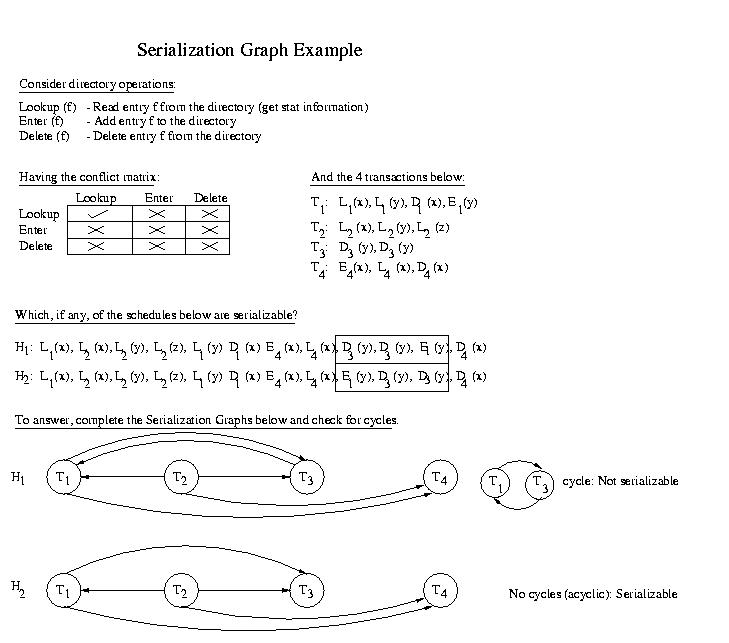

Example: Directory Operations

Let's take a careful look and make sure that we understand the source of the problem in schedule H₁. The fragment below shows only the relevant portion of the schedule:

. . . L₁(x) . . . L₁(y) . . . D₃(y) . . . D₃(y) . . . E₁(y) . . .

If we look at the fragment, we see that L₁(x) conflicts with D₃(y). Since L₁(x) occurs before D₃(y) in H₁, an equivalent serial schedule must execute T₁ before T₃. But if we look further ahead in the trace we see that D₃(y) occurs before E₁(y). Similarly, since these operations conflict, it implies that T₃ must occur before T₁ in an equivalent serial schedule. Both of these statments cannot be true. If T₁ executes before T₃, T₃ cannot execute before T₁. This schedule cannot be converted to an equivalent serial schedule. It is not serializable -- it is not safe.

Locking and Serializability

Remember two-phase locking from last class? Although it is handled by the transaction manager, it does allow for the interleaving of operations. Are the schedules that it generates serializable?

The answer to this is yes. Two-phase locking ensures that transactions which use the same objects cannot execute concurrently. This ensures that no conflicts can happen. If interleaved transactions don't share, we know that we are safe.

Two phase locking ensured serialzable schedules using what is known as inconsistency prevention. Prevention techniques constrain the transactions to ensure that conflicting operations can never happen. Two-phase locking does this by preventing transactions that share objects from executing concurrently. Although inconsistency prevention is effective, it is also expensive. Perfectly safe sharing may be prevented -- this unnecessarily reduces concurrency.
