The main goal of this project is to explore gradient-domain processing; specifically, we are interested in using "Poisson Blending" to seamlessly combine multiple images. To achieve this, we shall formulate the Poisson objective function as a least squares problem and solve for the pixel values of the blended image. The original assignment can be found here.
Before getting into the technical details of this project, let's first look at the inputs needed to run the code.
The Poisson objective function is given below:
In the equation above, "s" represents the source (foreground) image, "t" denotes the target (background) image, and "v" is the blended image we wish to solve for; the "i" denotes a specific pixel in the images, while "j" represents the four neighboring pixels of "i" (top, down, left and right). One thing that can be inferred from the equation is that the left summation only applicable when neighboring pixels (given by "j") are within the portion of the source image that is blended into the target image (which can be checked by looking the the pixel values of the mask); the right summation is applicable otherwise. Accordingly, we use "if...else" blocks (for each of the 4 neighboring pixels) to decide which summation constraint to use.
To solve the objective function, we first rewrite it as a matrix product Av = b. Here, A is a sparse matrix representing which pixels in the image "v" are used in each constraint. Each row of A represents the left-hand side of one constraint; the right-hand side of the constraint is placed in the same row of vector b. (Note, to have each row represent a constraint equation, the 2D image is represented as a 1D vector).
Once we build the sparse matrix A and vector b from the three inputs described earlier, we use the least squares solver function from the SciPy library (scipy.sparse.linalg.lsqr) to get the 1-D vector "v". We then reshape it into a 2-D image with the same dimensions as the target (backgroud) image.
Finally, we build the final image by taking pixels from the target (background) image for the unmasked region and pixels from the blended image "v" for the masked region. We do this for all 3 color channels (RGB) separately, and return the resulting 3-color blended image.
Before writing the code for the Poission Blending function described above, we first tested a simpler example. This was done in order to ensure that we were properly converting the objective function into a sparse matrix A and a vector b.
For this problem, the following single-channel image was used as the input:

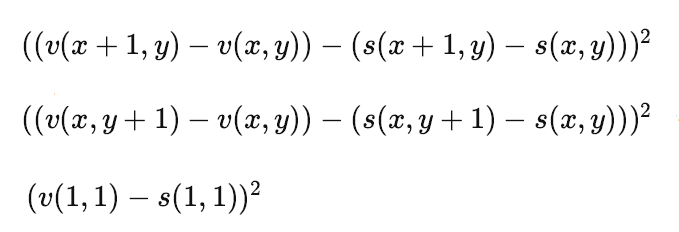

A set of three simpler objective functions (given below) were used to perform this initial test. Our goal was to find the values of pixels in image "v" that minize these expressions.
The exact same procedure described in the previous section was followed here (the difference being the objective functions and the single-channel, instead of multi-channel, image). The objective functions given in this section define a simple identity operation (by looking at the equations, it is clear that the values of pixels in image "v" should be the same as those of image "s" for the objective funtions to be minimum, i.e. 0). The result obtained by running the implemented code is given below.

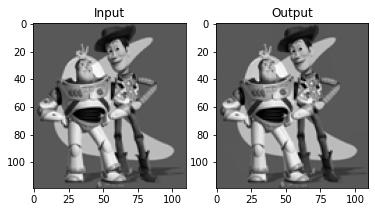

As can be seen, the output image is identical to the input image. This means that our conversion from the constraint equations to the matrix-multiplication format is as we expect.
Now, we get to the main portion of this project: the Poisson Blending task. To start things off, we select the two input images shown below.
Our goal is to blend the flying jet image (foreground) into the sky of the snowy mountain image (background) on the right. To do this, we must first create a mask describing the region we want to blend the images together. We used the "masking_code.py" code (provided with the assignment) to get the following foreground image, background image, and mask, which we will use for our Poisson Blending function.

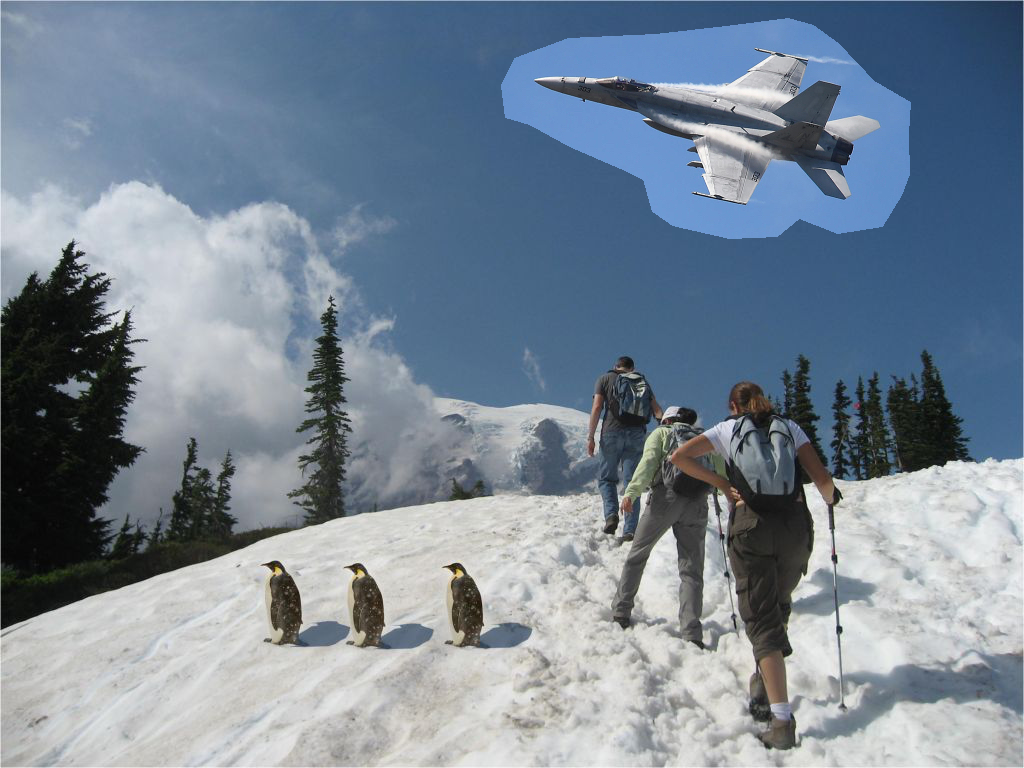

If we simply copy the pixels in the masked region from the foreground image to the background one, we get the following result:
Clearly, this is not good enough; hence we need Poisson Blending. The implementation of the Poisson Blending function was exactly as discussed in the "Approach" section (no extra realignment or rotation was performed since the inputs were satisfactory as is.) The Poisson Blending function performed the blending operation for each of the three color channels, and the resulting blended image was as follows:

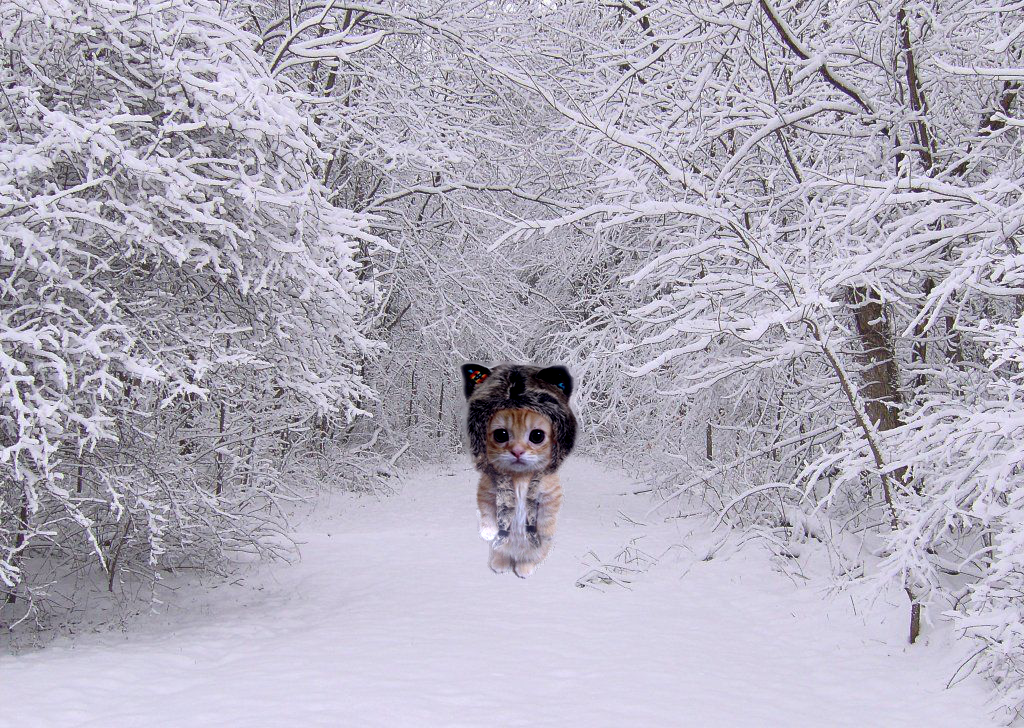

As can be seen above, the image obtained through Poisson Blending is clearly better than the simple "direct copy" method. Thus, we have successfully implemented the Poisson Blending function.
One of the main issues with our least squares approach is that the solution obtained using SciPy's lsqr function does not restrict values to a fixed range. In our implementation, we used float pixel values ranging from 0.0 to 1.0, however, some of the values in the solution image "v" were less than 0.0 or greater than 1.0. Without clipping the values of "v" (setting anything less than 0.0 to 0.0 and anything greater than 1.0 to 1.0), the exported image file looked distorted (only in the masked image).

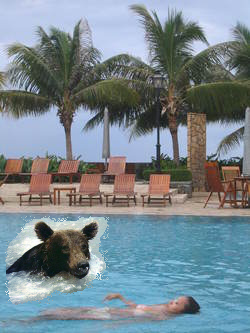

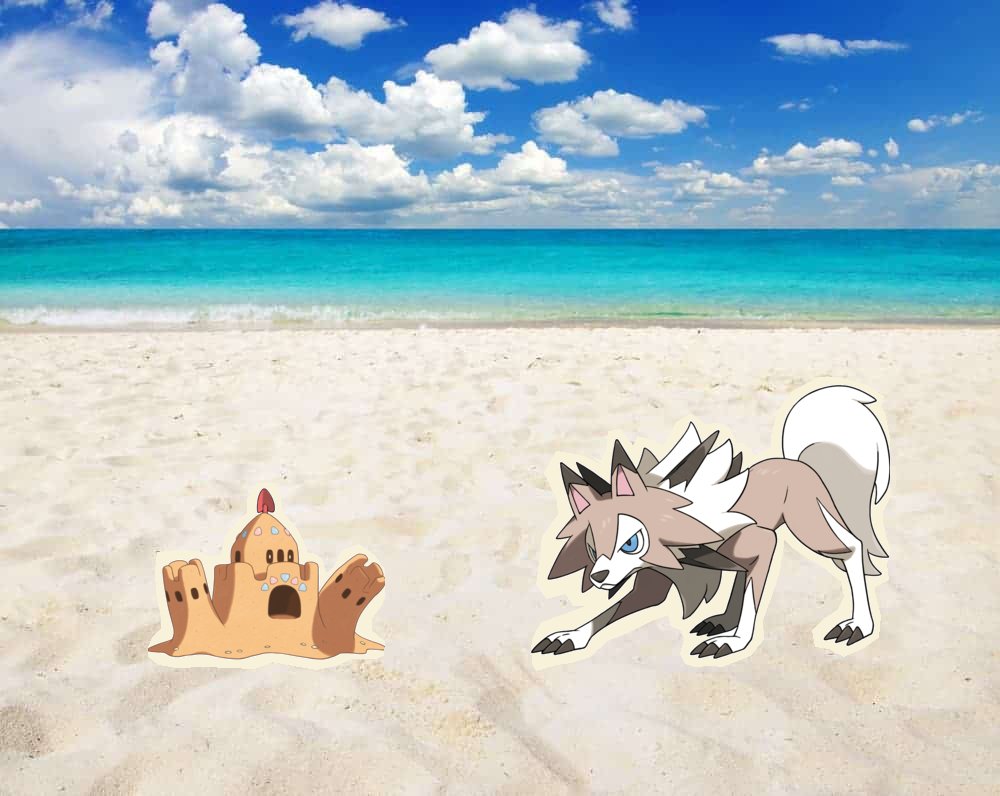

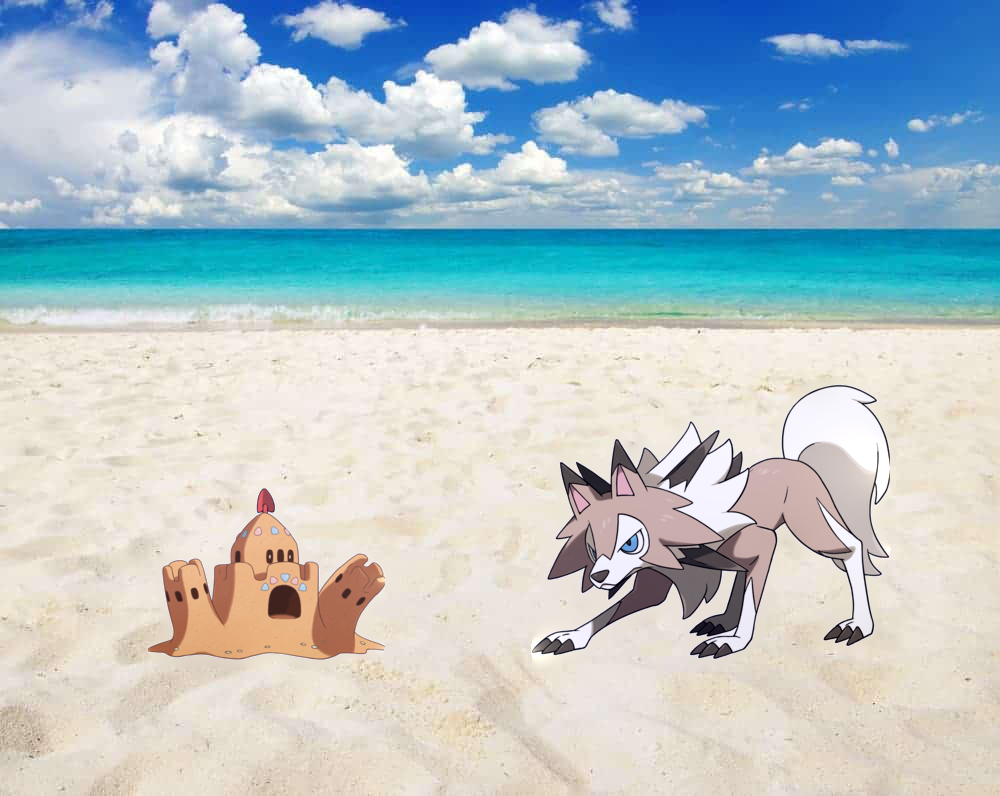

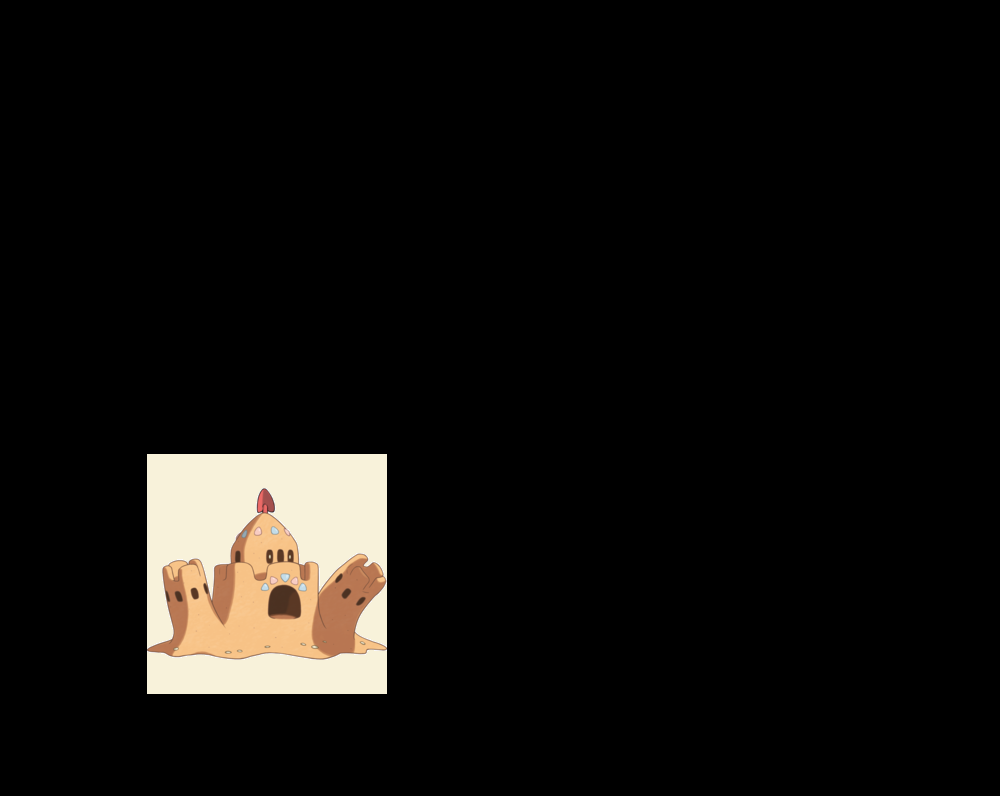

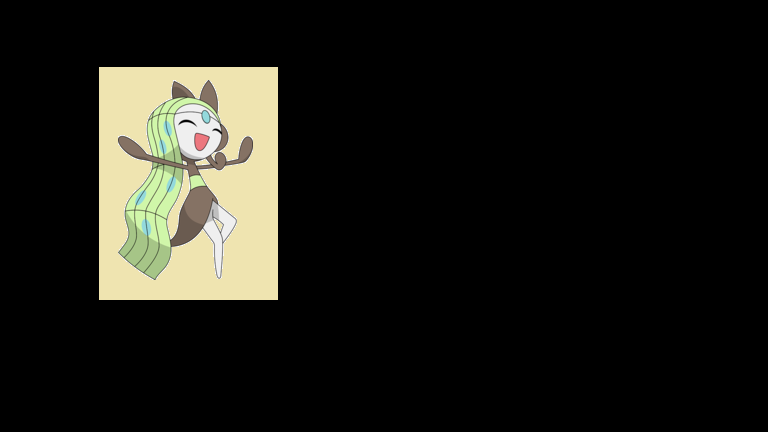

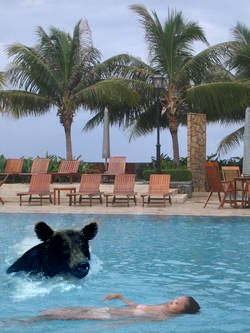

Another problem with Poisson Blending is that it does not work well when the foreground object and the background image have very different color palettes. This was not an issue for the "jet flying over the snowy mountain" example in the "Poisson Blending" section, however, the "bear in the pool" case didn't turn out so great—since the brown bear is being blended into blue waters, the bear in the poisson-blended output looks darker and bluish. The best way to fix this (if we want to use the same Poisson Blending function) is to select inputs that have similar color palettes. Alternatively, we can manually modify the colors in our input images to make the Poisson Blending result look better— the background color for the Pokemon images were manually added by selecting a color similar to the target image (though this strategy isn't always an option)
Another approach to blending images is to use the gradient in the source or target image that is larger (instead of simply using the gradient in the source image as we did in regular Poisson Blending). This is helpful when we want to retain some of the gradient of the target image—like if we want to blend something with a uniform/transparent background into another image. For example, if we want to take text written on a plain background and imprint it onto a wall image, a regular Poisson Blend operation would produce the following result:

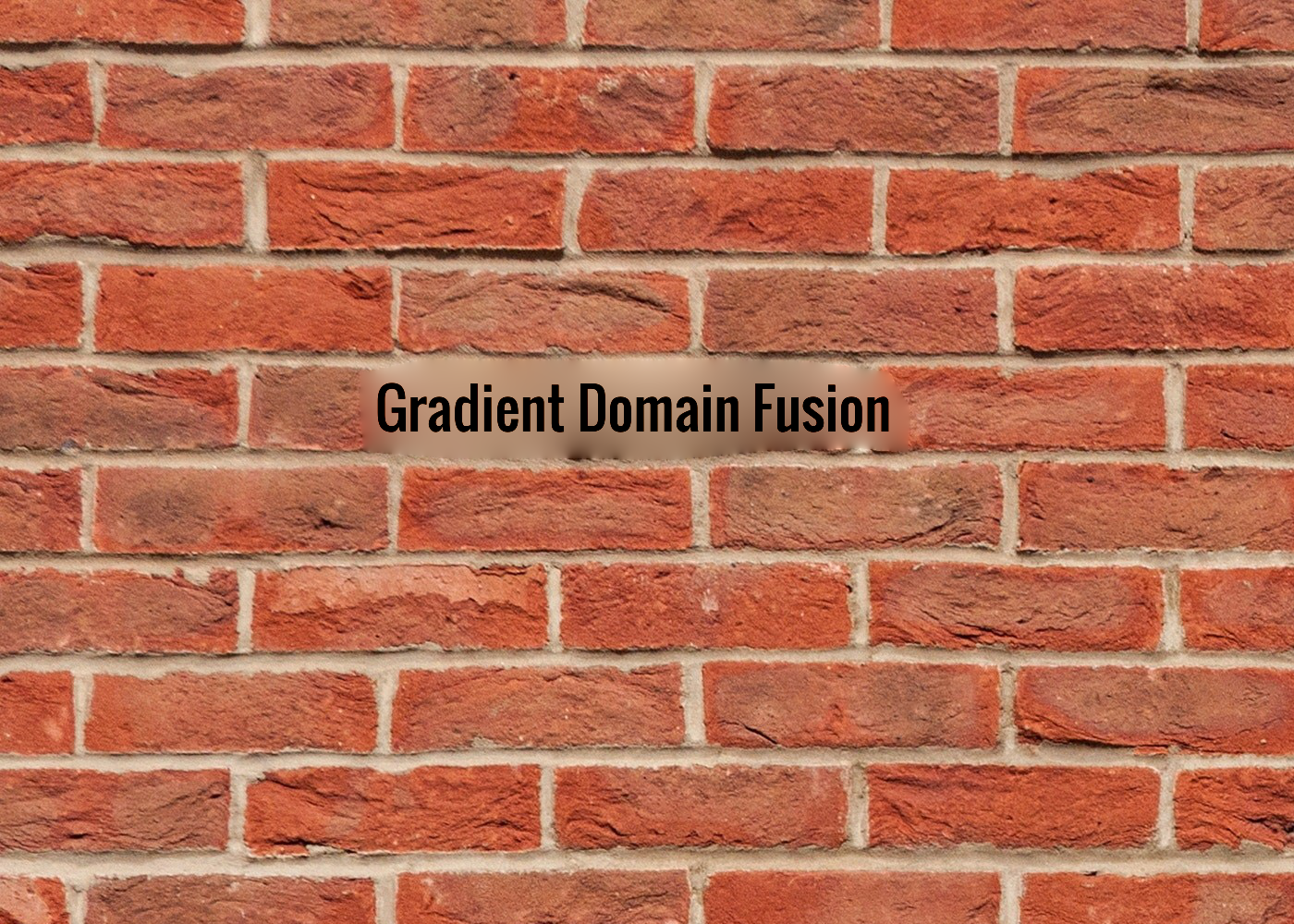

The result using mixed gradients is shown below (the implementation simply modifies the Poisson Blending function to add a "max()" operation for selecting the larger gradient).
Clearly, this is much better than the result of the regular Poisson Blending operation. This justifies the need to use mixed gradients for cases like the one discussed.
