16-889 Assignment 5

Name: Adithya Sampath
Andrew ID: adithyas

Late days used:

Q1. Classification Model (40 points)

Implemented the classification model in models.py.

Intput: points clouds from across 3 classes (chairs, vases and lamps objects)
Output: propapibility distribution indicating predicted classification (Dimension: Batch * Number of Classes)

To train the classification model, run python train.py --task cls.

To evaluate the classfication model, run python eval_cls.py.

To visualise the classfication results of every test point cloud, run python test_cls.py.

The test accuracy of the best model: 0.9779643231899265 (i.e. ~97.8%)

Graphs

Parameters	My Output

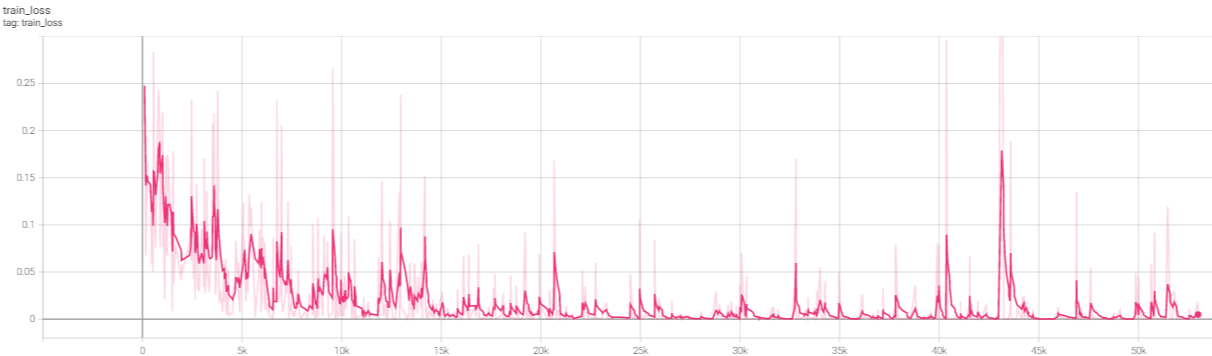

Train Loss

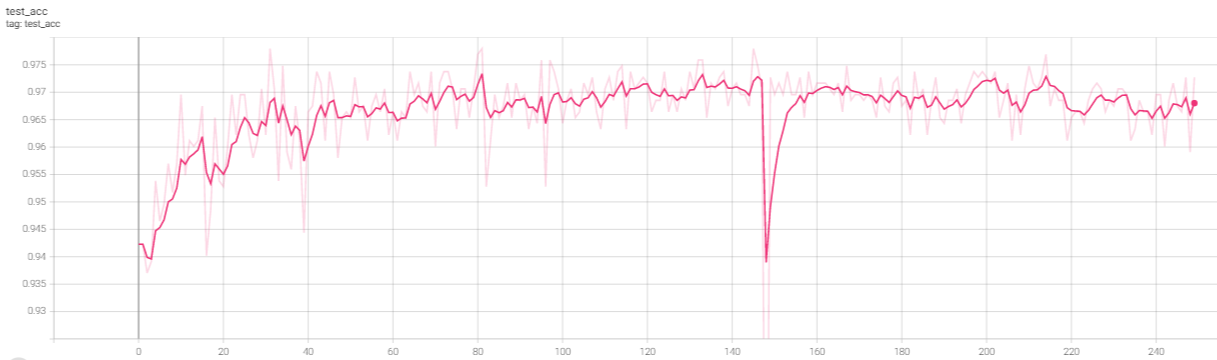

Test Accuracy

Results

Correct Predictions

Point Cloud	Prediction	Ground Truth
	Chair (0)	Chair (0)
	Chair (0)	Chair (0)
	Vase (1)	Vase (1)
	Vase (1)	Vase (1)
	Lamp (2)	Lamp (2)
	Lamp (2)	Lamp (2)

Failure Cases

Chair misclassified

Analysis for Chair: There were no chairs misclassified in the test data - this can be because of the data distribution, where there were more chair images than those of lamp and vase images.

Vase misclassified

Analysis for Vase: Although the model has high classification accuracy, it fails in some corner cases. In the first example, it is easy to misclassify it as lamp due to its closed structure. For the 2nd and 3rd examples it is classified as a chair since the objects have a base and back rest like structure which makes them look like a chair - the projections on top are misleading as well. The 4th, 5th, and 6th examples are also very misleading since they have features similar to the lamps - especially the 6th example, which even a human might mistake it to be a lamp.

Point Cloud	Prediction	Ground Truth
	Lamp (2)	Vase (1)
	Chair (0)	Vase (1)
	Chair (0)	Vase (1)
	Lamp (2)	Vase (1)
	Lamp (2)	Vase (1)
	Lamp (2)	Vase (1)

Lamp misclassified

Analysis for Lamp: Lamps are only misclassified as Vase in difficult corner cases. For example, in the 3rd and 5th Examples below, where they're just wide hollow structures with an opening, just like a vase. Hence the model misclassified only the difficult examples and classified most other point clouds correctly.

Point Cloud	Prediction	Ground Truth
	Vase (1)	Lamp (2)
	Vase (1)	Lamp (2)
	Vase (1)	Lamp (2)
	Vase (1)	Lamp (2)
	Vase (1)	Lamp (2)
	Vase (1)	Lamp (2)

Q2. Segmentation Model (40 points)

Implemented the segmentation model in models.py.

Input: points of chair objects (6 semantic segmentation classes)
Output: segmentation of points (Dimension: Batch * Number of Points per Object * Number of Segmentation Classes)

To train the model, run python train.py --task seg.

The model can be evaulated on test data by running python eval_seg.py - this will save two gif's, one for ground truth and the other for model prediction.

To visualise the segmentation results of every test point cloud data, run python test_seg.py.

The test accuracy of the best model: 0.9046784440842788 (i.e. ~90.47%)

Graphs

Parameters	My Output
Train Loss

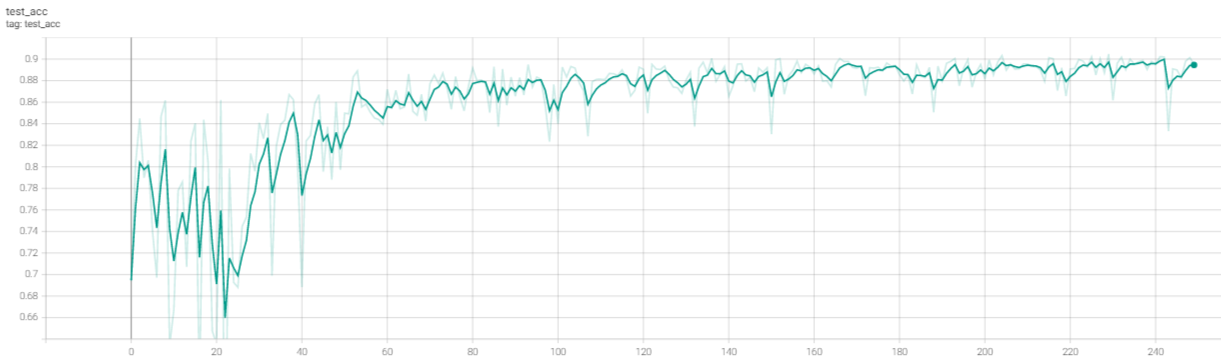

Test Accuracy

Results

Correct Predictions

Ground Truth	Prediction	Accuracy
		0.9434
		0.9555
		0.8606
		0.9027
		0.9762
		0.9304

Failure Cases

From the ground truth point clouds we can observe the following:

Part	Color
Head Rest	purple
Back rest	light blue
Seat	red
Arm rest	yellow
Base	dark blue
Misc external objects	white

The analysis for the wrong segmentations of 3 parts - the head rest, arm rest, and the base - are as follows:

1. Issue with Head rest of the chair

In most examples the head rest was never segmented as a separate part, and was always segmented as a back rest (light blue).

Ground Truth	Prediction	Accuracy
		0.53
		0.6832
		0.6566

2. Issue with Base of the chair

Analysis: The issues with base of the chair are different for each example - for the 1st example, the base is misinterpreted as a seat (i.e. red) throughout instead of dark blue (i.e. base). In the 2nd example, which is a difficult one, there is only a back rest, seat, and arm rest, and no base marked in the ground truth.

Ground Truth	Prediction	Accuracy
		0.5058
		0.5224

3. Issue with Arm rest of the chair

Analysis: Finally, there are also issues with the arm rest segmentation. In the 1st example below, the model assume an arm rest to exist whereas there is no arm rest marked in the ground truth. In the 2nd example,the model is unclear about the demarkations of where the arm rest region ends.

Ground Truth	Prediction	Accuracy
		0.8224
		0.7813

Q3. Robustness Analysis (20 points)

Conduct 2 experiments to analyze the robustness of your learned model. Some possible suggestions are:

You can rotate the input point clouds by certain degrees and report how much the accuracy falls
You can input a different number of points points per object (modify --num_points when evaluating models in eval_cls.py and eval_seg.py)

Experiment 1: Changing number of points in Point Cloud

Task	Accuracy Plot

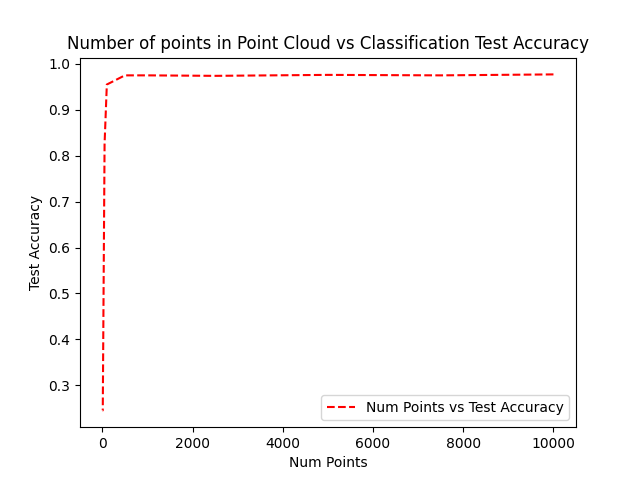

Classification

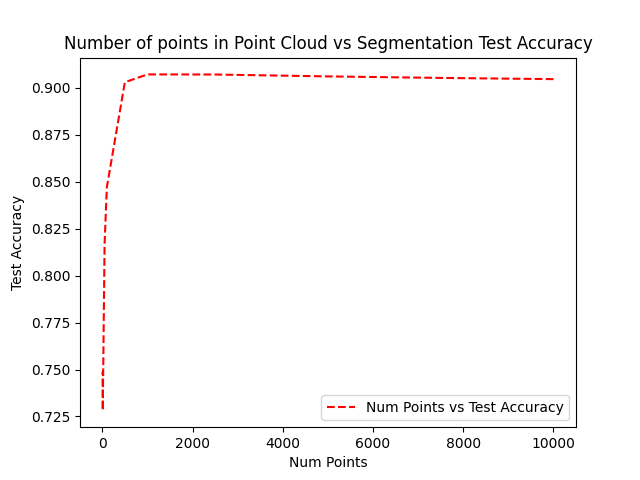

Segmentation

Test accuracy of best classification model: 0.9779

Test accuracy of best segmentation model: 0.9071

Procedure: Modified the number of points selected by changing the `num_points` argument. To perform analysis on changing num_points on the classification model, run `python points_analysis_cls.py`. To perform analysis on changing num_points on the segmentation model, run `python points_analysis_seg.py`.

Analysis:

We can observe from the graph for classification that even if we decrease num_points to 100 or 50 we observe a test accuracy of around 0.95 and 0.82 respectively (since it is clear that the struture of a chair is preserved even when num_points is as low as 100 or 50). This shows that the classification model is robust even with relatively low number of points. However, the test accuracy drop is significant when num_points is reduced to 10 or below, where the test accuracy drops to as low as 0.245 - I observed misclassification only in these cases where chair was misclassified as lamp. Hence, the classification model is fairly robust to changing the number of points (up to a certain threshold) in the point cloud.
We can observe from the graph for segmentation that even if we decrease num_points to 500 we observe a test accuracy of 0.903. This shows that even the segmentation model is fairly robust to reducing number of points in the point cloud. Like in the case above, a significant drop in accuracy is observed only for num_points of 10 or below. What I found surprising, is that the best test accuracy of 0.9071 was got for num_points = 2500, which shows that a dense point cloud is not absolutely necessary for good segmentation performance. Hence even the segmentation the model is fairly robust to changing number of points (up to a certain threshold) in the point cloud.

Classification

Points	Test Accuracy
10000	0.9779
7500	0.9758
5000	0.9758
2500	0.9748
1000	0.9748
500	0.9748
100	0.9548
50	0.8258
10	0.2455
5	0.2455

Point Cloud	Ground Truth	Prediction
	Chair (0)	Chair (0)
	Chair (0)	Chair (0)
	Chair (0)	Chair (0)
	Chair (0)	Chair (0)
	Chair (0)	Chair (0)
	Chair (0)	Chair (0)
	Chair (0)	Chair (0)
	Chair (0)	Chair (0)
	Chair (0)	Lamp (2)
	Chair (0)	Lamp (2)

Segmentation

Points	Test Accuracy	Ground Truth	Prediction
10000	0.9046
7500	0.9053
5000	0.9061
2500	0.9071
1000	0.9072
500	0.9030
100	0.8470
50	0.8166
10	0.7282
5	0.7488

Experiment 2: Rotating the Point Cloud by certain degrees

Task	Accuracy Plot

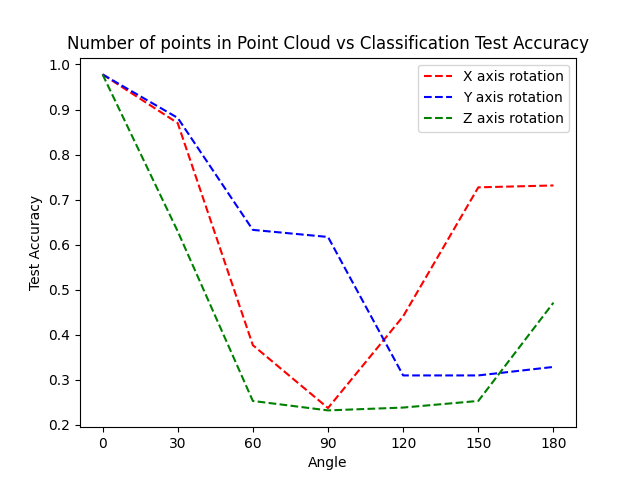

Classification

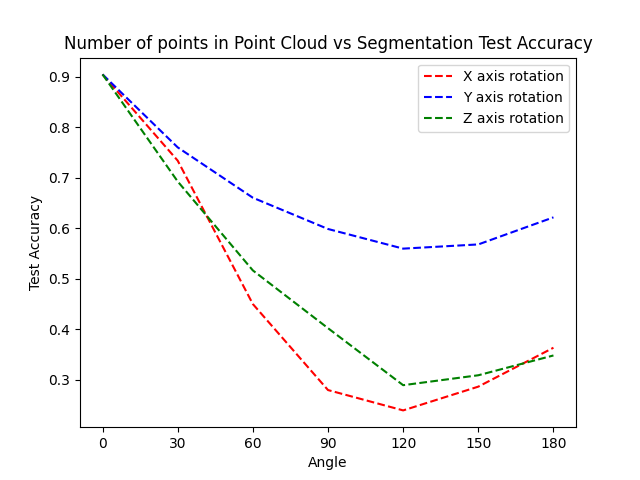

Segmentation

Test accuracy of best classification model: 0.9779

Test accuracy of best segmentation model: 0.9046

Procedure: By keeping num_points constant (as 10000), I rotate the point clouds in x, y, and z axes between angles 0 to 180 degrees. I applied a rotation matrix (for each of the axes) on the point clouds to perform this experiment. To perform rotation analysis of the classification model, run `python rotate_analysis_cls.py`. To perform rotation analysis of the segmentation model, run `python rotate_analysis_seg.py`.

NOTE: The rotation along y-axis isn't very evident since the gif rotates along that axis

Analysis:

We can observe from the graph for classification test accuracy that the model is not robust to rotation. The best accuracy is observed only when the points clouds are not rotated. The classification results are poor when any rotation is applied. In fact, the test accuracy drop is very significant when rotated by 90 degrees on any axis - test accuracy is lowest when rotated by this angle. Since the model has not been trained on data which has different orientations of the chair, this result is expected. Poorest results are observed when rotated along the z-axis.
We can observe from the graph for segmentation test accuracy that the model is not robust to rotation. The best accuracy is observed only when the points clouds are not rotated. We can observe that when the chair is flipped upside down (i.e. rotated 180 degrees), the top of the chair (which is at the bottom) is segmented as dark blue and the bottom of the chair (which is at the top) is segmented light blue. At 60 degrees, the top is segmented yellow like an arm rest, and when rotated 90 degrees, the top of the chair the segmented red like a seat. This shows a clear bias in the data where the model is biased to predict specific chair parts at specific locations.
