16-889: Learning for 3D Vision

Assignment- 2

Aditya Ghuge aghuge

Late Days Used = 1

1. Exploring loss functions

1.1. Fitting a voxel grid

Ground Truth Prediction

1.2. Fitting a point cloud

Ground Truth Prediction

1.3. Fitting a mesh

Ground Truth Prediction

2. Reconstructing 3D from single view

2.1. Image to voxel grid

Image Ground Truth Prediction

2.2. Image to point cloud

Image Ground Truth Prediction

2.3. Image to mesh

Image Ground Truth Prediction

2.4. Quantitative comparison

Representation	Avg. F1 Score
Voxels	85.953
Point Cloud	94.171
Mesh	92.259

Batch size is 8

Explaination

Based on the above table average F1 score is maximum (approx. 94%) compared to other two representation. In representation of point clouds we have liberty to predict points randomly as there is no co-dependency between points which can constrain the model to predict. In mesh we initialize the mesh with a sphere, which does restrict us with creating holes in the prediction as the mesh vertices are constrained due to connections(faces). It cannot take arbitrary positions. In voxels the main constrain is the voxel cube which we select as it will decide the granularity of the predictions. Also, as number of output values in point cloud are less than voxels it gets learned better and quicker. Training voxels was a challenging task as output size is 32*32*32. I may have reached suboptimal parameters, but with better training it can beat Mesh as we can generate holes in voxels.

2.5. Analyze effects of hyperparms variation

Analyse the results, by varying an hyperparameter of your choice. For example n_points or vox_size or w_chamfer or initial mesh(ico_sphere) etc. Try to be unique and conclusive in your analysis.

First analysis Change in n_points 1000, 5000, 7000 with batch size of 4

Num_Points	Avg. F1 Score
1000	86.628
5000	92.381
7000	93.146

number of Points: 1000

number of Points: 5000

number of Points 7000

As we can clearly see increasing number of points increases average F1 score: as we increase number of points, more points get correctly predicted and as a result we get high F1 score.

Also effect of batch size as we increase the batch size our average F1 score increases as evident for num_points 5000

Seconds analysis Change in initial mesh ico_sphere 3 , 5 batch size of 4

Ico_sphere	Avg. F1 Score
3	86.901
5	90.135

Ico_sphere = 3

Ico_sphere = 5

As we can clearly see increasing number of vertices in mesh increases average F1 score: as we increase number of vertices, the mesh can more effectively predicted the model and as a result we get high F1 score.

2.6. Interpret your model

To interpret the model, I have taken second last layer of my decoder model (by adding hook) as output features for an image. Then I have computed its nearest neighbours so as to find the features generated by the models are similar for similar looking images of chair. i.e., A sofa should be closely linked to square shaped chair/objects. I have computed 4 nearest neighbors of each image to get an idea of the model’s performance. Below are some images and its nearest neighbor’s images.

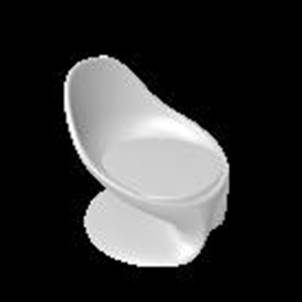

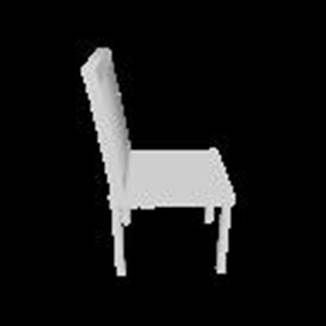

Image Neighbours

As you can see similar looking objects are classified as nearest neighbors showing good performance of model.

Another interpretation would be just looking visually are the gif to see the performance of the model

Below are the comparison between n_points 5000 and 7000 for point model

number of Points: 5000

number of Points 7000

As evident num_points model outputs look more visually correct.

3. (Extra Credit) Exploring some recent architectures.

3.1 Implicit network

Code uploaded

3.2 Parametric network

Code uploaded. Just the model is defined.
