1. Sphere Tracing

The sphere_tracing() function implements the sphere tracing algorithm. It was implemented as per the following pseudo-code

​x
        eps = 1e-5
        z = ones_like(directions)
        mask = ones((directions.shape[0], 1))

        points = origins + z * directions

        # SDF value
        dists = implicit_fn(points)

        # Compute distance to intersection
        while any(mask * dists > eps):

            z = z + dists
            points = origins + z*directions
            dists = implicit_fn(points)
            mask[dists >= far] = False

        return points, mask

For each iteration, the points with an SDF value greater than a threshold are masked out.

2. Optimizing a Neural SDF

Input gif

Output gif

Implementing the MLP Network

The network implemented for SDF prediction was similar to that of the NeRF coordinate MLP for $\sigma$$\sigma$ prediction; using positional encodings for ($x,y,z$$x, y, z$) coordinates and skip connections between layers. The output was a linear layer predicting values in $\mathbb{R}$$\mathbb{R}$.

Eikonal loss

The eikonal constraint was applied on the gradient of the outputs with respect to the inputs. The condition enforced was $|||\mathrm{\nabla }{f}_{\theta }|{|}_2-1|$$| ||\nabla f_{\theta}||_2 - 1|$.

3. VolSDF

Theory questions

• How does high beta bias your learned SDF? What about low beta?

  A low beta places a larger weight near the region with lower SDFs. That is, the region near the true 3D shape has high probability of having higher density and decreases sharply as we move away from it. This can be seen from the trained VolSDF models for low beta. We get sharper reconstructions from a lower beta. For higher beta, a higher density is placed for a larger range of SDF values, thus the transmittance value can be distributed across a larger range of points and thus decrease the reconstruction error. This makes the reconstructions lose fidelity.



  $\alpha =10.0,\beta =1e-4$$\alpha = 10.0, \beta = 1e-4$







$\alpha =10.0,\beta =0.5$$\alpha = 10.0, \beta = 0.5$

• Would an SDF be easier to train with volume rendering and low beta or high beta? Why?

  A SDF with an image reconstruction loss would be easier trained with a higher beta. Since having a high beta allows the network to more easily distribute the radiance across more points along a ray as compared to a network with low beta which forces the network to put radiance correctly at a point close to the true surface.

• Would you be more likely to learn an accurate surface with high beta or low beta? Why?

  An accurate surface would be learnt better by a network with a lower beta. This is because with lower beta values, the densities are more concentrated near the true surface boundary and hence radiance also needs to be accumulated near the true surface region. This would force the network to learn a more accurate representation of the underlying 3D shape.

part_3.gif and part_3_geometry.gif

4. Neural Surface Extras

4.1 Render a Large Scene with Sphere Tracing

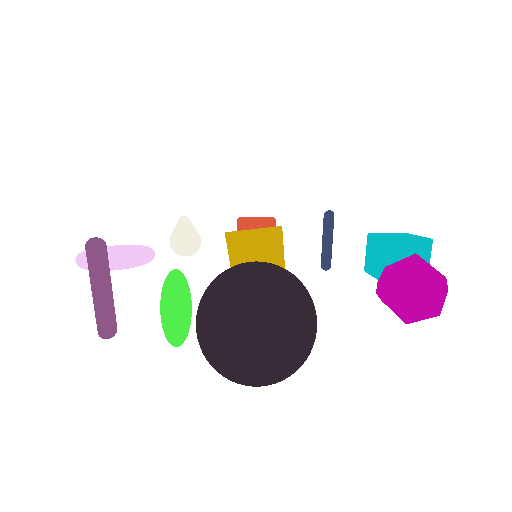

The below scene was created with 10 unique SDF shapes. The created SDF shapes were

• Torus
• Box
• Sphere
• Box frame
• Capsule
• Icosahedron
• Rounded cone
• Cylinder
• Tetrahedron
• Ellipsoid

I hope creating 10 unique SDF shapes is sufficient for this question rather than creating a scene with 20 shapes with multiple copies :)

4.2 Fewer Training Views (= 20 views)

Because of using a surface based SDF representation, VolSDF is able to work with lesser number of views as compared to NeRF. With NeRF, the results look blurrier and have weird color artifacts.

VolSDF

NeRF (w/ hierarchical sampling)

4.3 SDF to Density Conversions (NeuS)

The NeuS method uses the derivative of the sigmoid function with $s=120$$s = 120$. But I was not able to get satisfactory results with this density conversion. This could be due to the fact that higher $s$$s$ values causes a sharper peak near the true surface and hence the network has a harder time learning a continuous smooth surface.
