16-889 Assignment 2: Single View to 3D

I used three late days for this assignment.

1. Exploring loss functions

1.1. Fitting a voxel grid (5 points)

To run: python fit_data.py

Ground Truth	Optimized Voxel Grid

1.2. Fitting a point cloud (10 points)

To run: python fit_data.py --type 'point'

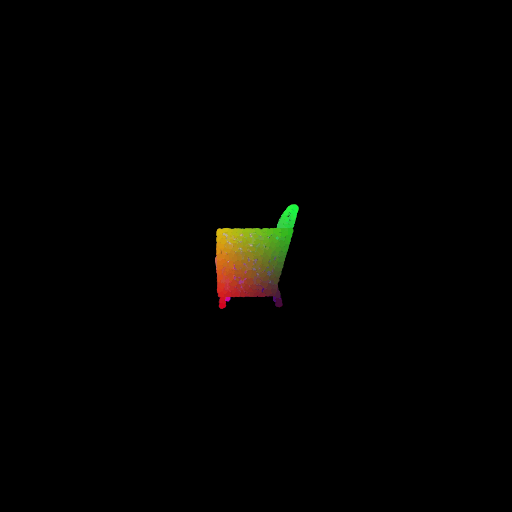

Ground Truth	Optimized Point Cloud

1.3. Fitting a mesh (5 points)

To run: python fit_data.py --type 'mesh'

Ground Truth	Optimized Mesh

2. Reconstructing 3D from single view

2.1. Image to voxel grid (15 points)

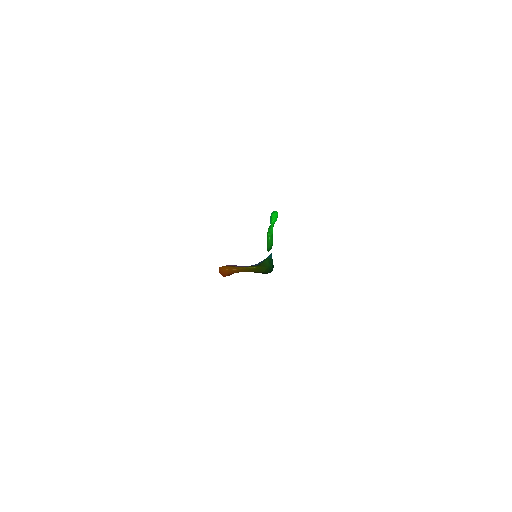

Train: python train_model.py --type 'vox'. Evaluate: python eval_model.py --type 'vox' --load_checkpoint

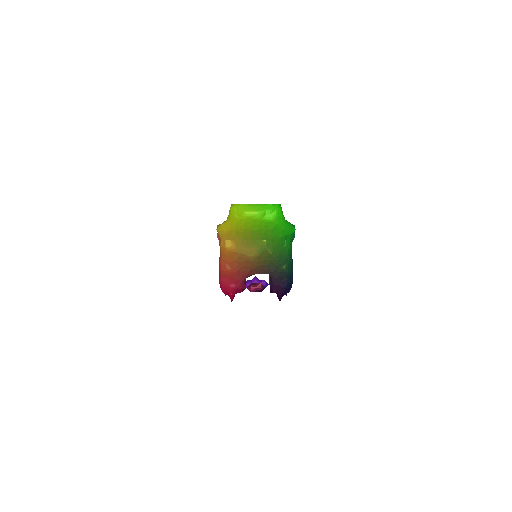

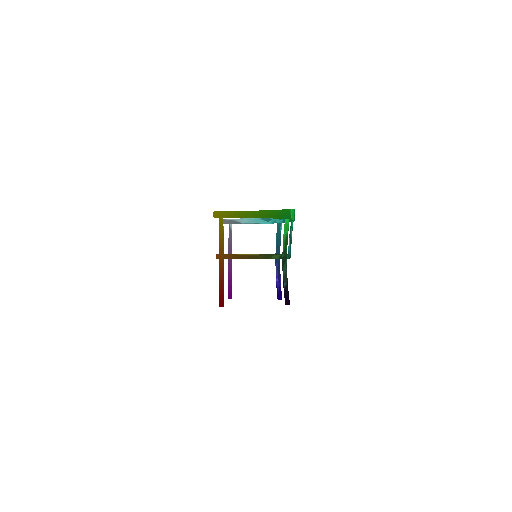

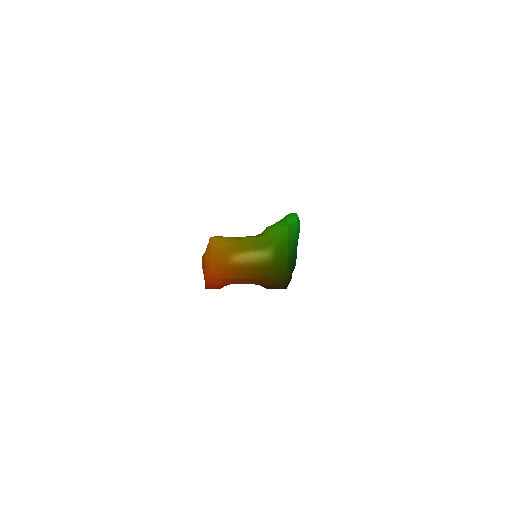

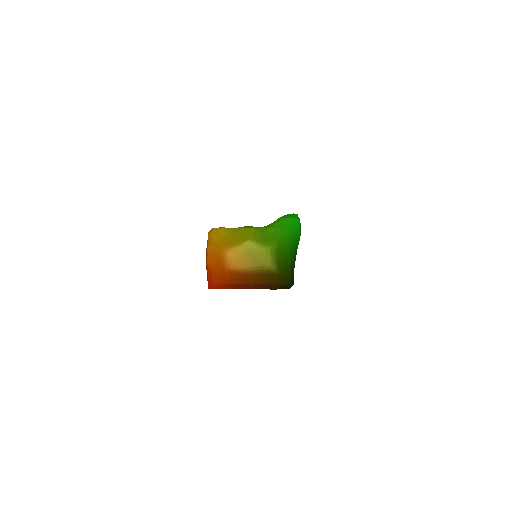

RGB Image	Ground Truth	Predicted

2.2. Image to point cloud (15 points)

Train: python train_model.py --type 'point'. Evaluate: python eval_model.py --type 'point' --load_checkpoint

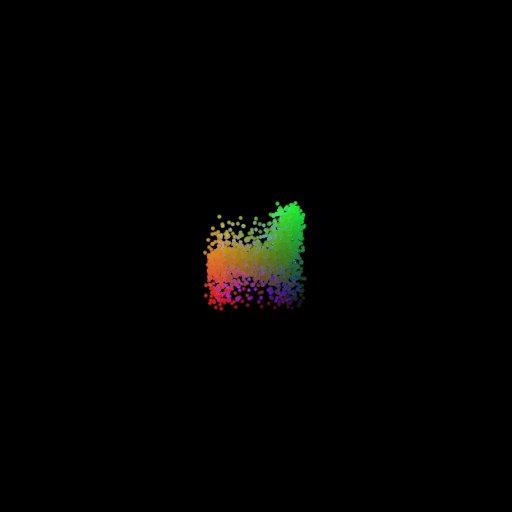

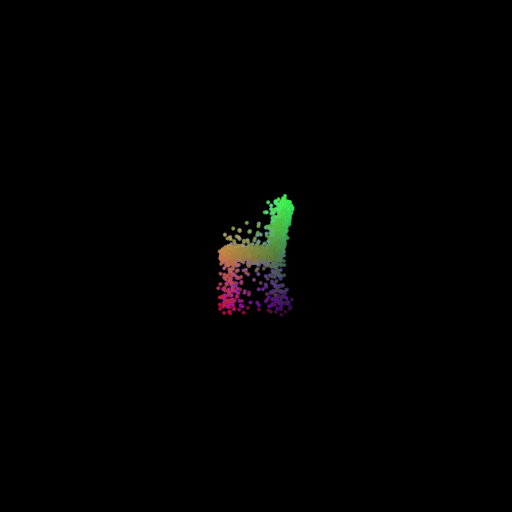

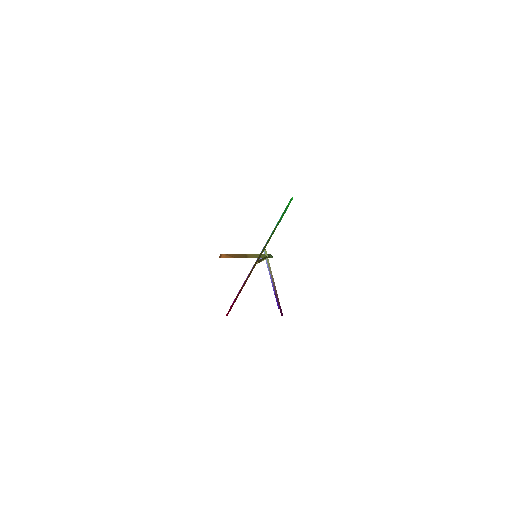

RGB Image	Ground Truth	Predicted Point Cloud

2.3. Image to mesh (15 points)

Train: python train_model.py --type 'mesh'. Evaluate: python eval_model.py --type 'mesh' --load_checkpoint

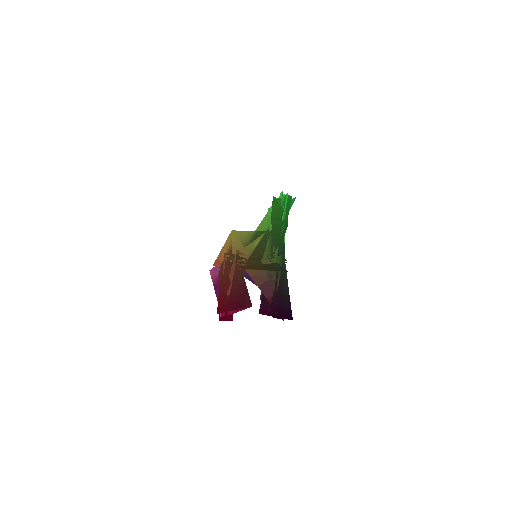

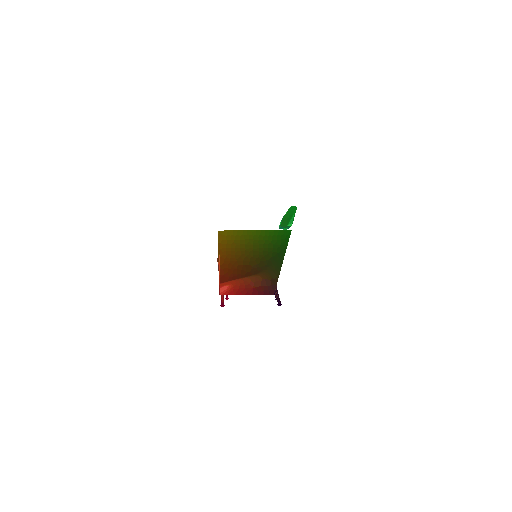

RGB Image	Ground Truth	Predicted Mesh

2.4. Quantitative comparisions(10 points)

For evaluating you can run: python eval_model.py --type voxel|mesh|point --load_checkpoint

Voxels performed the worst in terms of F1, and point cloud and mesh performed similarly. Point cloud and mesh sample points from their respective representations and are able to better express thinner structures compared to a fixed voxel size grid. With voxels, either the thin structure would be completely ignored or be predicted as much bigger resulting in more false positives.

2.5. Analyse effects of hyperparms variations (10 points)

I tried different values of w_smooth to investigate the effects on the predicted outputs.

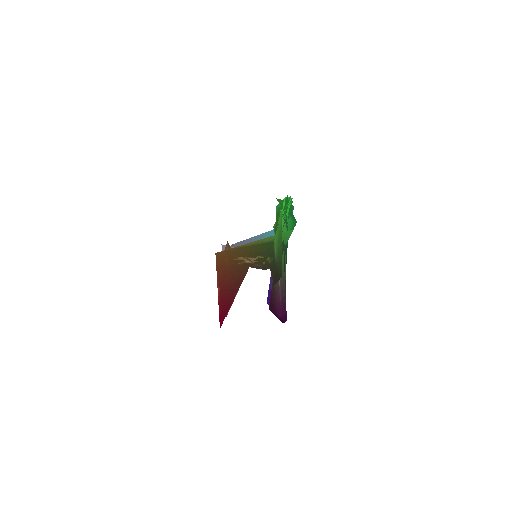

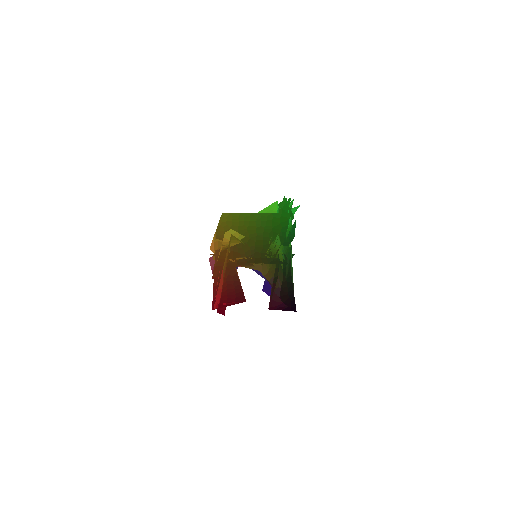

As we increase the weight of the smoothing, the chamfer distance weight is effectively reduced. As such, the model will care less about the errors from the point cloud matching, and rather focus on making the mesh smooth. We can see this clearly below with the different smooth values.

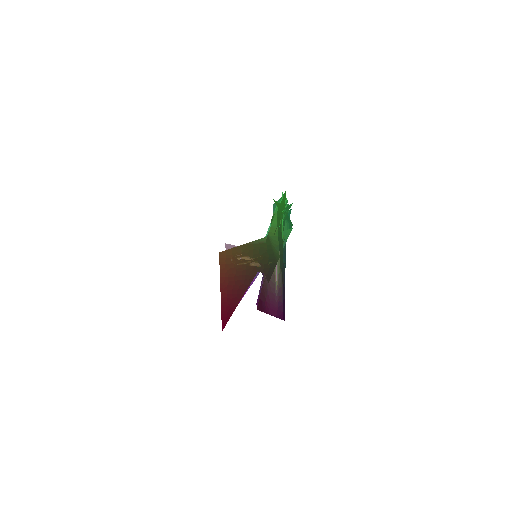

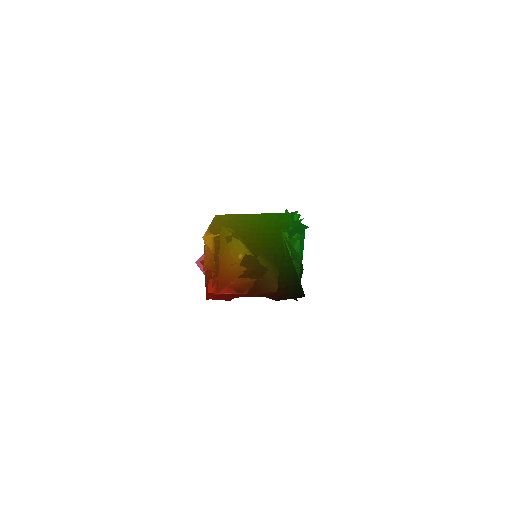

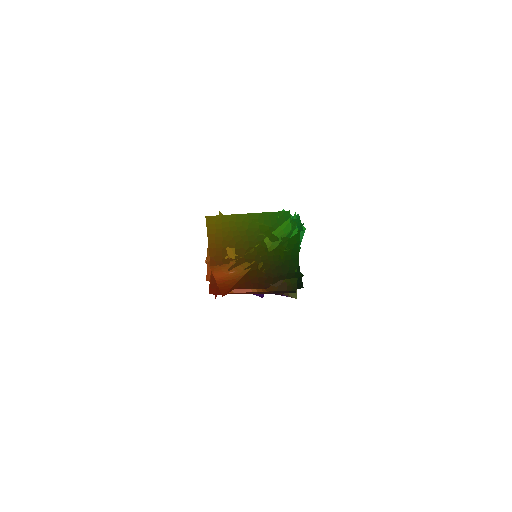

Smoothness	Example 1	Example 2	Example 3	Example 4	Example 5
0.1
100.0
1000.0

In terms of quantitative performance, we can see the higher smoothness values performed worse and worse.

Overall, visually 100.0 smoothness looks the best as there aren't as many pointy edges compared to 0.1, while still capturing more details than 1000.0. In effect, this hyperparameter seems to act like a regularizer.

2.6. Interpret your model (15 points)

We can record the outputs of each layer in the decoder and cluster the vectors across the entire test batch using L2 norm. Running k-means on the second to last layer in the decoder with 10 clusters yielded the following:

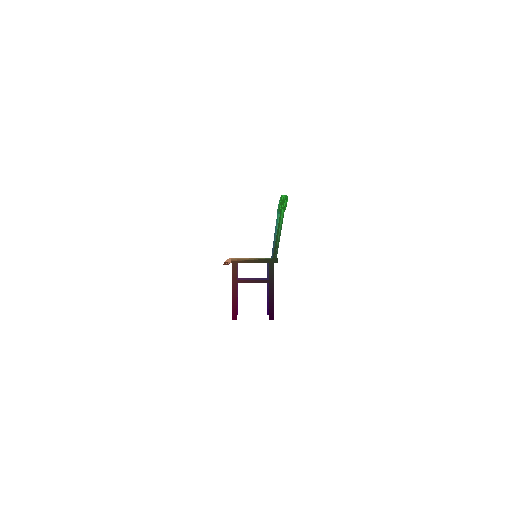

Cluster	Example 1	Example 2	Example 3	Example 4	Example 5
1
2
3
4

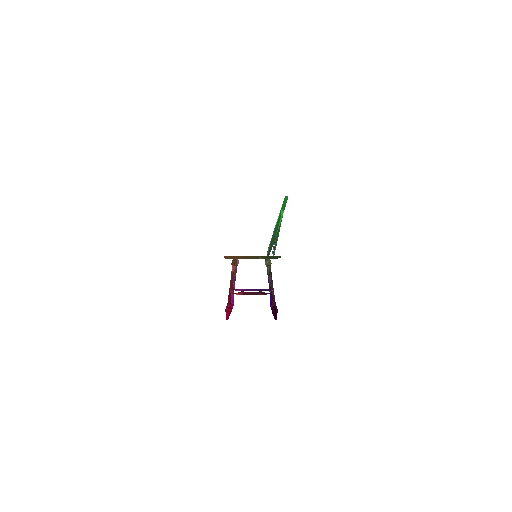

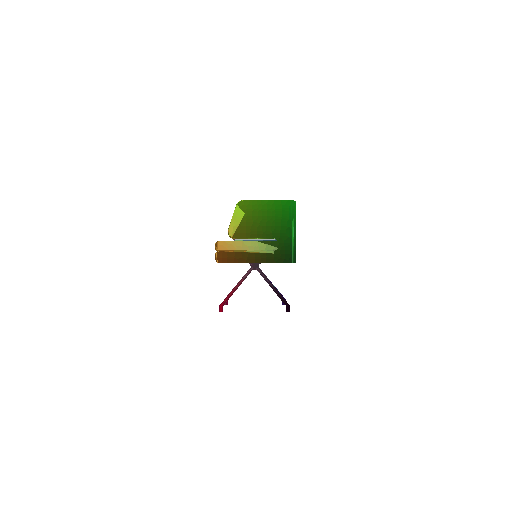

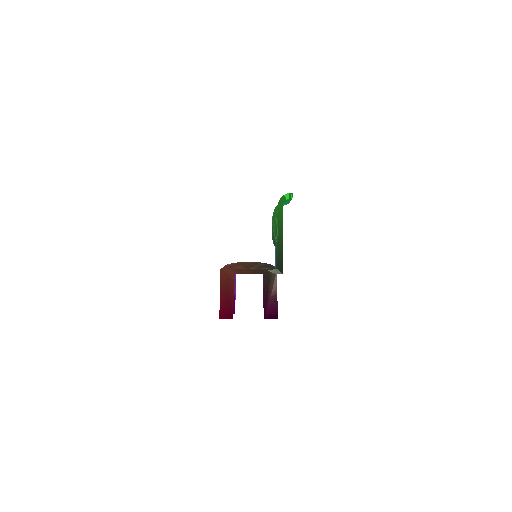

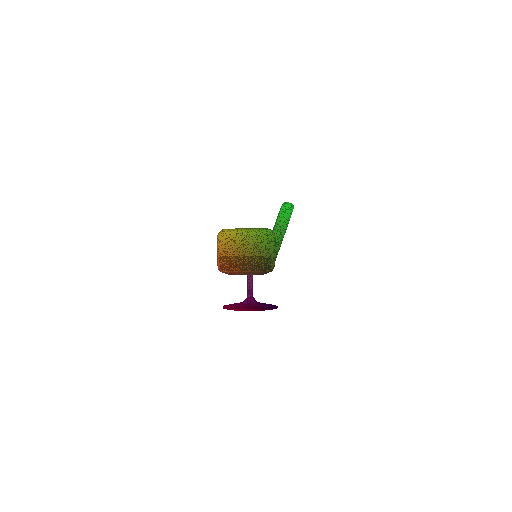

Each of the chairs across the rows belong to the same cluster and are determined as similar to each other. Some clusters are more interpretable than others. For example, cluster 1 tends to prefer similar sized chairs all with similar orientations. Cluster 4 seems to cluster chairs with legs that go farther away from each other. While these are not perfect "visible" features, our model believes these chairs to be similar feature-wise.

3. (Extra Credit) Exploring some recent architectures.

3.1 Implicit network (10 points)

Implement a implicit decoder that takes in as input 3D locations and outputs the occupancy value. Some papers for inspiration [1,2]

3.2 Parametric network (10 points)

Train: python train_model.py --type 'parametric'. Evaluate: python eval_model.py --type 'parametric' --load_checkpoint

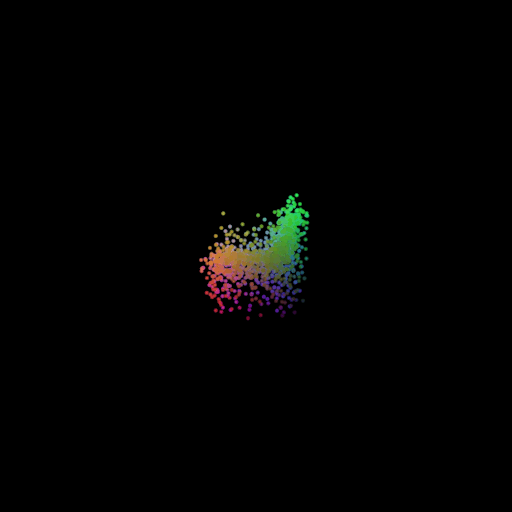

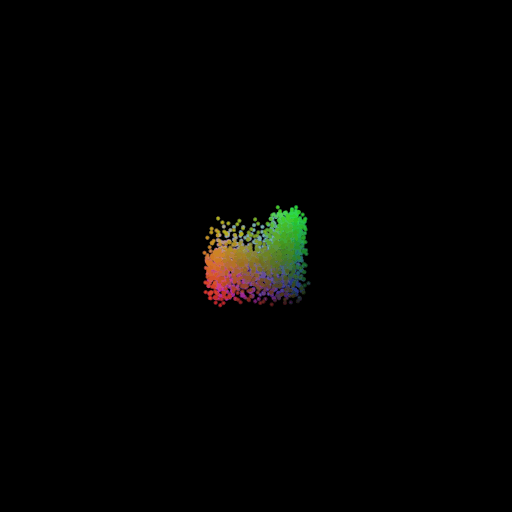

I sample points on a plane and sum over 3 different MLP which then predicts the 3d point outputs. The average test F1 score was 0.906. Note this model was only trained for 1000 steps, unlike previous models which were trained for 10000 steps. Performance could potentially improve by expanding the MLPs more, however, the complexity and the size of the model would also grow tremendously.

RGB Image	Ground Truth	Predicted Point Cloud
