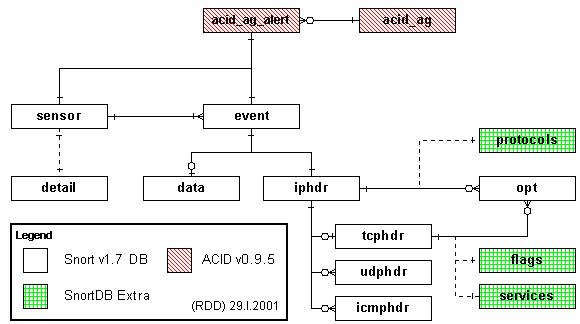

ACID: Database (v0) ER Diagram
| Table | Component | Description |
| sensor | Snort | Sensor name |
| event | Snort | Meta-data about the detected alert |
| data | Snort | Contents of packet payload |
| iphdr | Snort | IP protocol fields |
| tcphdr | Snort | TCP protocol fields |
| udphdr | Snort | UDP protocol fields |
| icmphdr | Snort | ICMP protocol fields |
| opt | Snort | IP and TCP options |
detail |
Snort | (lookup table) Level of detail with which a sensor is logging |
protocols |
SnortDB extra | (lookup table) Layer-4 (IP encoded) protocol list |
services |
SnortDB extra | (lookup table) TCP and UDP service list |
flags |
SnortDB extra | (lookup table) TCP flag list |
| acid_ag | ACID | Meta-data for alert groups |
| acid_ag_alert | ACID | Alerts in each alert group |
+-----------+------------------+------+-----+---------+----------------------------------------------+ | Field | Type | Null | Key | Default | Description | +-----------+------------------+------+-----+---------+----------------------------------------------+ | sid | int(10) unsigned | | PRI | NULL | Sensor ID | | hostname | text | YES | | NULL | Hostname of the sensor (IP if can't qualify) | | interface | text | YES | | NULL | Network interface (e.g. eth0) | | filter | text | YES | | NULL | BPF filter | | detail | tinyint(4) | YES | | NULL | Detail level of the logging | | encoding | tinyint(4) | YES | | NULL | Encoding format of the payload | +-----------+------------------+------+-----+---------+----------------------------------------------+
+-----------+------------------+------+-----+---------------------+----------------------------------------+ | Field | Type | Null | Key | Default | Description | +-----------+------------------+------+-----+---------------------+----------------------------------------+ | sid | int(10) unsigned | | PRI | 0 | Sensor ID | | cid | int(10) unsigned | | PRI | 0 | Event ID | | signature | int(10) unsigned | | MUL | 0 | Signature name | | timestamp | datetime | | MUL | 0000-00-00 00:00:00 | Timestamp of when the event was logged | +-----------+------------------+------+-----+---------------------+----------------------------------------+
+--------------+------------------+------+-----+---------+-----------------------------------------------------+ | Field | Type | Null | Key | Default | Description | +--------------+------------------+------+-----+---------+-----------------------------------------------------+ | sid | int(10) unsigned | | PRI | 0 | Sensor ID | | cid | int(10) unsigned | | PRI | 0 | Event ID | | data_payload | text | YES | | NULL | Packet payload encoded according to sensor.encoding | +--------------+------------------+------+-----+---------+-----------------------------------------------------+
+----------+----------------------+------+-----+---------+----------------------------------------------+ | Field | Type | Null | Key | Default | Description | +----------+----------------------+------+-----+---------+----------------------------------------------+ | sid | int(10) unsigned | | PRI | 0 | Sensor ID | | cid | int(10) unsigned | | PRI | 0 | Event ID | | ip_src | int(10) unsigned | | MUL | 0 | Source IP address (32-bit unsigned int) | | ip_dst | int(10) unsigned | | MUL | 0 | Destination IP address (32-bit unsigned int) | | ip_src0 | tinyint(3) unsigned | YES | | NULL | Source IP octet 3 (e.g. 127.x.x.x) | | ip_src1 | tinyint(3) unsigned | YES | | NULL | Source IP octet 2 (e.g. x.0.x.x) | | ip_src2 | tinyint(3) unsigned | YES | | NULL | Source IP octet 1 (e.g. x.x.0.x) | | ip_src3 | tinyint(3) unsigned | YES | | NULL | Source IP octet 0 (e.g. x.x.x.1) | | ip_dst0 | tinyint(3) unsigned | YES | | NULL | Dest. IP octet 3 (e.g. 127.x.x.x) | | ip_dst1 | tinyint(3) unsigned | YES | | NULL | Dest. IP octet 2 (e.g. x.0.x.x) | | ip_dst2 | tinyint(3) unsigned | YES | | NULL | Dest. IP octet 1 (e.g. x.x.0.x) | | ip_dst3 | tinyint(3) unsigned | YES | | NULL | Dest. IP octet 0 (e.g. x.x.x.1) | | ip_ver | tinyint(3) unsigned | YES | | NULL | IP version | | ip_hlen | tinyint(3) unsigned | YES | | NULL | IP Header length | | ip_tos | tinyint(3) unsigned | YES | | NULL | IP type-of-service | | ip_len | smallint(5) unsigned | YES | | NULL | IP datagram length | | ip_id | smallint(5) unsigned | YES | | NULL | IP ID | | ip_flags | tinyint(3) unsigned | YES | | NULL | IP flags | | ip_off | smallint(5) unsigned | YES | | NULL | IP fragment offset | | ip_ttl | tinyint(3) unsigned | YES | | NULL | IP time-to-live | | ip_proto | tinyint(3) unsigned | | | 0 | IP protocol | | ip_csum | smallint(5) unsigned | YES | | NULL | IP checksum | +----------+----------------------+------+-----+---------+----------------------------------------------+
+-----------+----------------------+------+-----+---------+----------------------+ | Field | Type | Null | Key | Default | Description | +-----------+----------------------+------+-----+---------+----------------------+ | sid | int(10) unsigned | | PRI | 0 | Sensor ID | | cid | int(10) unsigned | | PRI | 0 | Event ID | | tcp_sport | smallint(5) unsigned | | MUL | 0 | TCP source port | | tcp_dport | smallint(5) unsigned | | MUL | 0 | TCP destination port | | tcp_seq | int(10) unsigned | YES | | NULL | TCP sequence number | | tcp_ack | int(10) unsigned | YES | | NULL | TCP ACK number | | tcp_off | tinyint(3) unsigned | YES | | NULL | TCP offset | | tcp_res | tinyint(3) unsigned | YES | | NULL | TCP reserved | | tcp_flags | tinyint(3) unsigned | | MUL | 0 | TCP flags | | tcp_win | smallint(5) unsigned | YES | | NULL | TCP window | | tcp_csum | smallint(5) unsigned | YES | | NULL | TCP checksum | | tcp_urp | smallint(5) unsigned | YES | | NULL | TCP urgent pointer | +-----------+----------------------+------+-----+---------+----------------------+
+-----------+----------------------+------+-----+---------+----------------------+ | Field | Type | Null | Key | Default | Description | +-----------+----------------------+------+-----+---------+----------------------+ | sid | int(10) unsigned | | PRI | 0 | Sensor ID | | cid | int(10) unsigned | | PRI | 0 | Event ID | | udp_sport | smallint(5) unsigned | | MUL | 0 | UDP soure port | | udp_dport | smallint(5) unsigned | | MUL | 0 | UDP destination port | | udp_len | smallint(5) unsigned | YES | | NULL | UDP length | | udp_csum | smallint(5) unsigned | YES | | NULL | UDP checksum | +-----------+----------------------+------+-----+---------+----------------------+
+-----------+----------------------+------+-----+---------+----------------------+ | Field | Type | Null | Key | Default | Description | +-----------+----------------------+------+-----+---------+----------------------+ | sid | int(10) unsigned | | PRI | 0 | Sensor ID | | cid | int(10) unsigned | | PRI | 0 | Event ID | | icmp_type | tinyint(3) unsigned | | MUL | 0 | ICMP type | | icmp_code | tinyint(3) unsigned | | | 0 | ICMP code | | icmp_csum | smallint(5) unsigned | YES | | NULL | ICMP checksum | | icmp_id | smallint(5) unsigned | YES | | NULL | ICMP ID | | icmp_seq | smallint(5) unsigned | YES | | NULL | ICMP sequence number | +-----------+----------------------+------+-----+---------+----------------------+
+-----------+---------------------+------+-----+---------+----------------------------------------+ | Field | Type | Null | Key | Default | Description | +-----------+---------------------+------+-----+---------+----------------------------------------+ | sid | int(10) unsigned | | PRI | 0 | Sensor ID | | cid | int(10) unsigned | | PRI | 0 | Event ID | | optid | int(10) unsigned | | PRI | 0 | Option ID (multiple options per alert) | | opt_proto | tinyint(3) unsigned | | | 0 | Option protocol (IP, TCP) | | opt_code | tinyint(3) unsigned | | | 0 | Option code | | opt_len | smallint(6) | YES | | NULL | Option length | | opt_data | text | YES | | NULL | Option data | +-----------+---------------------+------+-----+---------+----------------------------------------+
+----------+------------------+------+-----+---------+-----------------------------------+ | Field | Type | Null | Key | Default | Description | +----------+------------------+------+-----+---------+-----------------------------------+ | ag_id | int(10) unsigned | | PRI | NULL | Alert Group (AG) ID | | ag_name | varchar(40) | YES | | NULL | AG name | | ag_desc | text | YES | | NULL | AG description | | ag_ctime | datetime | YES | | NULL | Timestamp of AG creation time | | ag_ltime | datetime | YES | | NULL | Timestamp of last AG modification | +----------+------------------+------+-----+---------+-----------------------------------+
+--------+------------------+------+-----+---------+---------------------+ | Field | Type | Null | Key | Default | Description | +--------+------------------+------+-----+---------+---------------------+ | ag_id | int(10) unsigned | | PRI | 0 | Alert Group (AG) ID | | ag_sid | int(10) unsigned | | PRI | 0 | Sensor ID | | ag_cid | int(10) unsigned | | PRI | 0 | Event ID | +--------+------------------+------+-----+---------+---------------------+
