Project 2
Defining Parameter File
In this project, we will modify some parameters
to have probabilistic distributions. After parameters are
defined, we indicate the analysis file for ANSYS to solve.
Then the next step is to specify probabilistic distributions
for each input parameter and all output parameters. Before
we can solve, we have to specify the sampling method and
its parameters.
Here are some macro files needed to specify
this problem.
Click here to download.

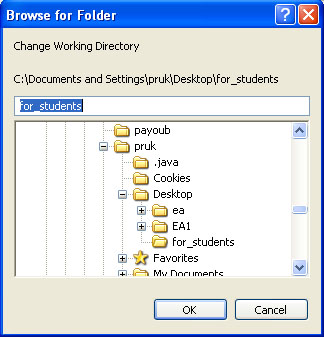

First of all, define working directory. Go to

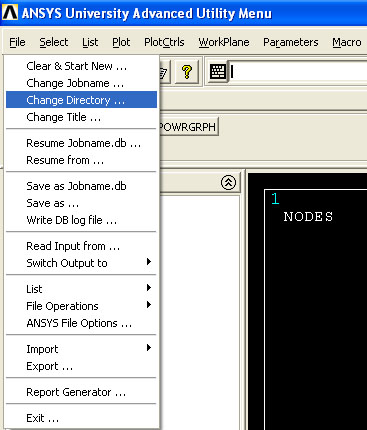

Utillity Menu -> Change directory
then browse for directory where you saved macro
files.
The next step is to load input file. Go to
Utility Menu -> File -> Read Input from
Then browse location of the file.
Reading input file is
equivalent to typing "/INP, filename.mac" in the
command line.
|
